SN74AVC4T774 4-Bit Dual-Supply Bus Transceiver

SN74AVC4T774 Description

SN74AVC4T774 SCES693I * FEBRUARY 2008 * REVISED FEBRUARY 2025 SN74AVC4T774 4-Bit Dual-Supply Bus Transceiver With Configurable Voltage.
This 4-bit noninverting bus transceiver uses two separate configurable power-supply rails.

SN74AVC4T774 Features

* Each channel has an independent DIR control input
* Control inputs VIH/VIL levels are referenced to VCCA voltage
* Fully configurable dual-rail design allows each port to operate over the full 1.1V to 3.6V power-supply range
* I/Os are 4.6V tolerant
* Ioff S

SN74AVC4T774 Applications

* Personal electronic
* Industrial
* Enterprise

📥 Download Datasheet

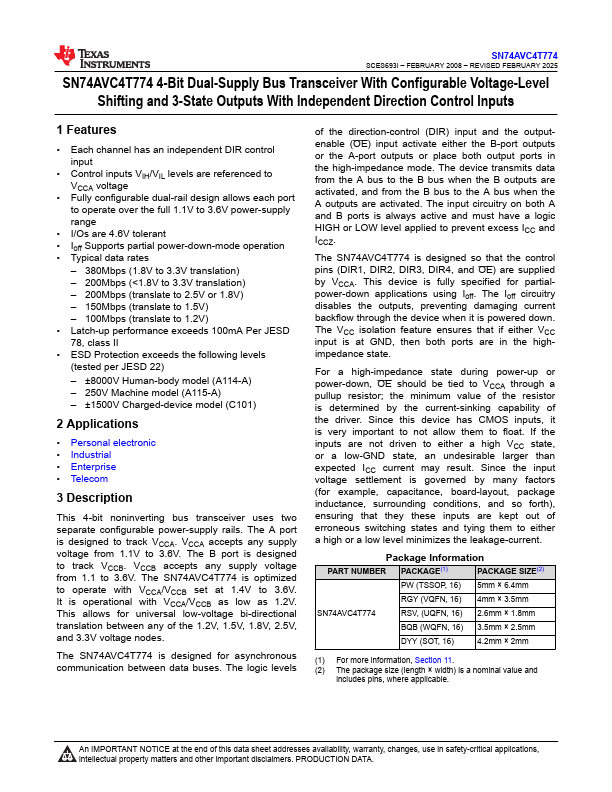

Preview of SN74AVC4T774 PDF

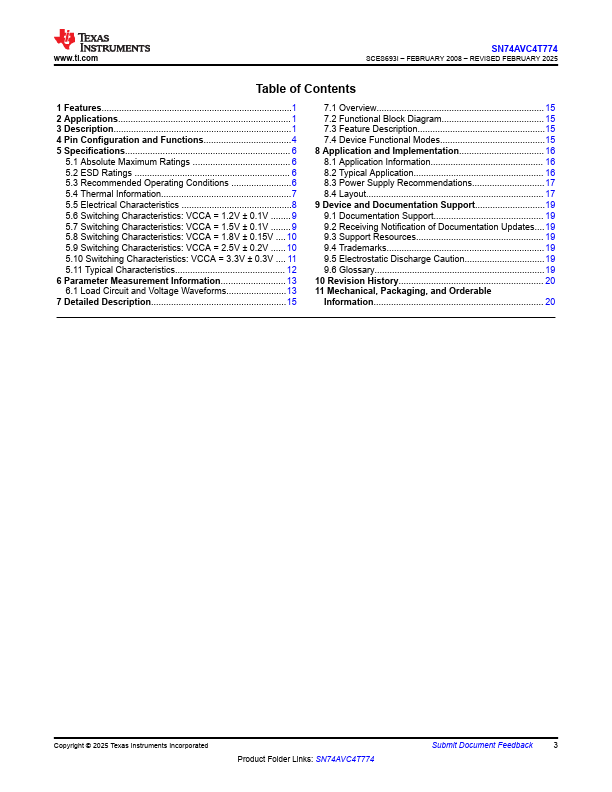

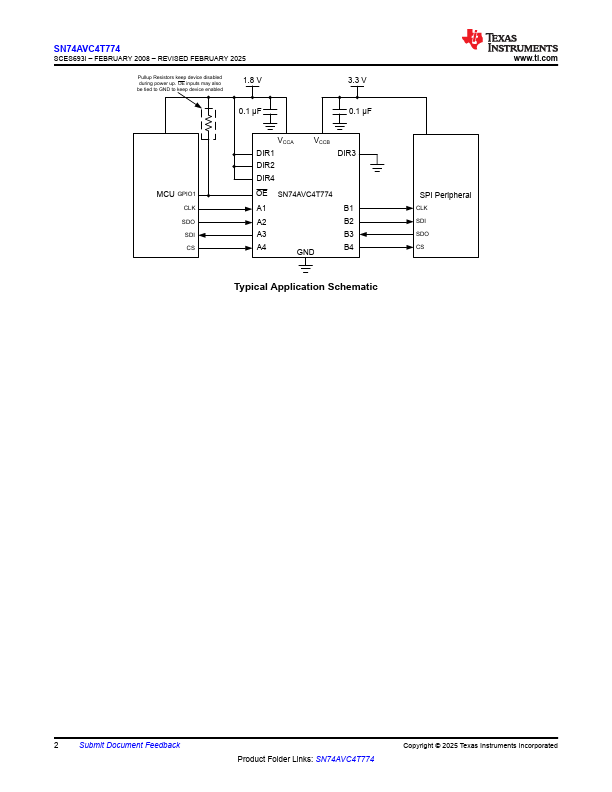

datasheet Preview Page 2 datasheet Preview Page 3
