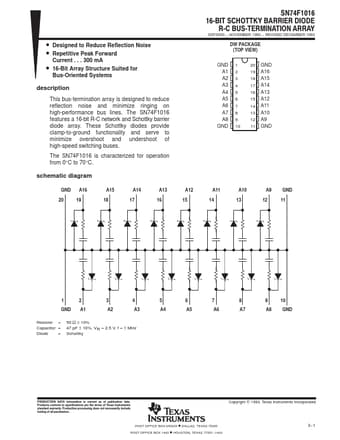

* a 16-bit R-C network and Schottky barrier diode array. These Schottky diodes provide clamp-to-ground functionality and serve to minimize overshoot and undershoot of high-speed switching buses. The SN74F1016 is characterized for operation from 0°C to 70°C. schematic diagram GND A16 20 19 A15 18
SN74F1016
0.97 MB
16-bit schottky barrier diode rc bus-termination array.
* Designed to Reduce Reflection Noise
* Repetitive Peak Forward
Current . . . 300 mA
* 16-Bit Array Structure Suited for
Bus-O.
