SN74HC02 Datasheet, Gates, Texas Instruments

SN74HC02 Features

  • Gates
  • Buffered inputs
  • Wide operating voltage range: 2 V to 6 V
  • Wide operating temperature range:
      –40°C to +85°C
  • Supports fanout up to 1

PDF File Details

Part number:

SN74HC02

Manufacturer:

Texas Instruments ↗

File Size:

1.30MB

Download:

📄 Datasheet

Description:

Quadruple 2-input positive-nor gates. This device contains four independent 2-input NOR gates. Each gate performs the Boolean function Y = A + B in positive logic. Device

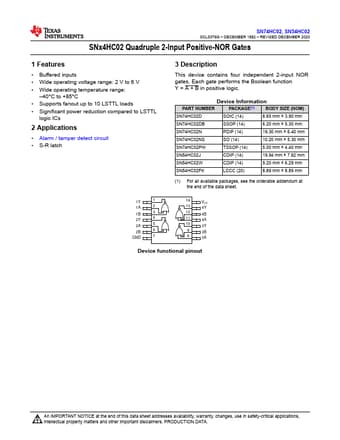

Datasheet Preview: SN74HC02 📥 Download PDF (1.30MB)
Page 2 of SN74HC02 Page 3 of SN74HC02

SN74HC02 Application

  • Applications
  • Alarm / tamper detect circuit
  • S-R latch 3 Description This device contains four independent 2-input NOR gates. Eac
