SN74HC02N

Quadruple 2-Input Positive-NOR Gates

Texas Instruments

SN74HC02N Features

* Buffered inputs

* Wide operating voltage range: 2 V to 6 V

* Wide operating temperature range:

* 40°C to +85°C

* Supports fanout up to 10 LSTTL loads

* Significant power reduction compared to LSTTL logic ICs 2 Applications

* Alarm / tamper det

SN74HC02N General Description

This device contains four independent 2-input NOR gates. Each gate performs the Boolean function Y = A + B in positive logic. Device Information PART NUMBER PACKAGE(1) BODY SIZE (NOM) SN74HC02D SOIC (14) 8.65 mm × 3.90 mm SN74HC02DB SSOP (14) 6.20 mm × 5.30 mm SN74HC02N PDIP (14) 19.30 .

SN74HC02N Datasheet (1.30 MB)

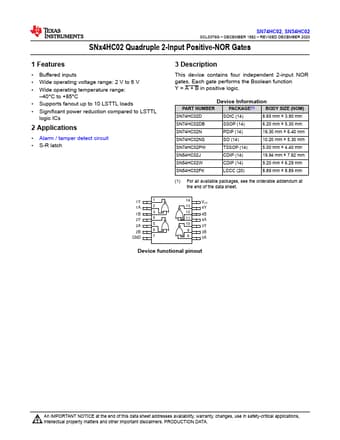

SN74HC02N Datasheet Preview — Preview of SN74HC02N PDF

Datasheet Details

Part number:

SN74HC02N

Manufacturer:

Texas Instruments ↗

File Size:

1.30 MB

Description:

Quadruple 2-input positive-nor gates.
www.ti.com SN74HC02, SN54HC02 SCLS076G

* DECEMBER 1982 S

* NRE7V4IHSECD0D2E,CSENM5B4EHR C200220 SCLS076G

* DECEMBER 1982
<.
