SN74HC4020 Datasheet, Counters, Texas Instruments

SN74HC4020 Features

• Counters
• Wide operating voltage range of 2 V to 6 V
• Outputs can drive up to 10 LSTTL loads
• Low power consumption, 80-µA max ICC
• Typical tpd = 12 ns
<

PDF File Details

Part number:

SN74HC4020

Manufacturer:

Texas Instruments ↗

File Size:

1.32MB

Download:

📄 Datasheet

Description:

14-bit asynchronous binary counters. The ’HC4020 devices are 14-stage binary ripple-carry counters that advance on the negative-going edge of the clock pulse. The counte

SN74HC4020 Application

• Applications intellectual property matters and other important disclaimers. PRODUCTION DATA. SN54HC4020, SN74HC4020 SCLS158F
    – DEC

TAGS

SN74HC4020

Texas Instruments

📁 Related Datasheet

SN74HC4020D - 14-Bit Asynchronous Binary Counters (Texas Instruments)

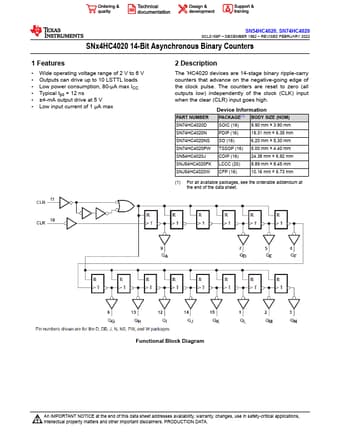

SN54HC4020, SN74HC4020 SCLS158F – DECEMBER 1982 – REVISED FEBRUARY 2022 SNx4HC4020 14-Bit Asynchronous Binary Counters 1 Features • Wide operating vo.
