SN74HC4040D

12-Bit Asynchronous Binary Counters

SN74HC4040D Features

* Wide operating voltage range of 2 V to 6 V

* Outputs can drive up to 10 LSTTL loads

* Low power consumption, 80-µA max ICC

* Typical tpd = 12 ns

* ±4-mA output drive at 5 V

* Low input current of 1 µA max 2 Description The ’HC4040 devices are 12-st

SN74HC4040D General Description

The ’HC4040 devices are 12-stage asynchronous binary counters, with the outputs of all stages available externally. A high level at the clear (CLR) input asynchronously clears the counter and resets all outputs low. The count is advanced on a high-tolow transition at the clock (CLK) input. Applicat.

SN74HC4040D Datasheet (1.85 MB)

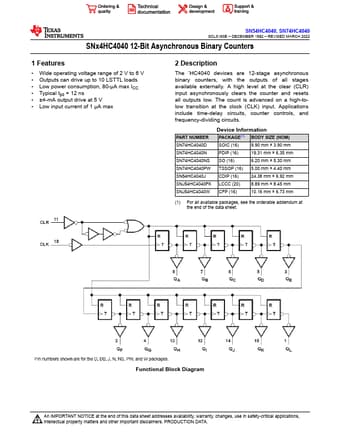

Preview of SN74HC4040D PDF

Datasheet Details

Part number:

SN74HC4040D

Manufacturer:

Texas Instruments ↗

File Size:

1.85 MB

Description:

12-bit asynchronous binary counters.
