SN74HCT244

Octal Buffers and Line Driver

SN74HCT244 Features

* Operating Voltage Range of 4.5 V to 5.5 V

* High-Current Outputs Drive up to 15 LSTTL Loads

* Low Power Consumption: 80-µA Maximum ICC

* Typical tpd = 13 ns

* ±6-mA Output Drive at 5 V

* Low Input Current of 1 µA Maximum

* Inputs Are TTL-Volt

SN74HCT244 General Description

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clockdrivers, and bus-oriented receivers and transmitters. The SNx4HCT244 devices are organized as two 4-bit buffers or drivers with separate outputenable (O.

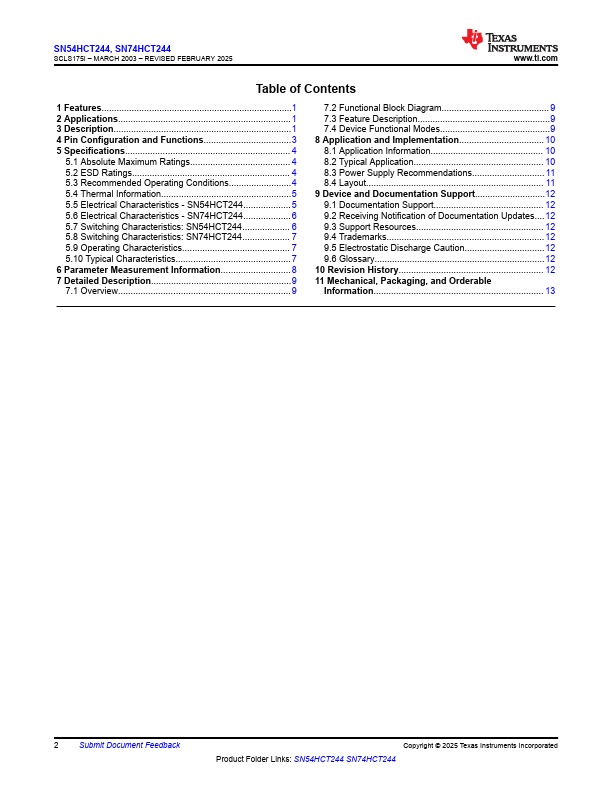

SN74HCT244 Datasheet (1.99 MB)

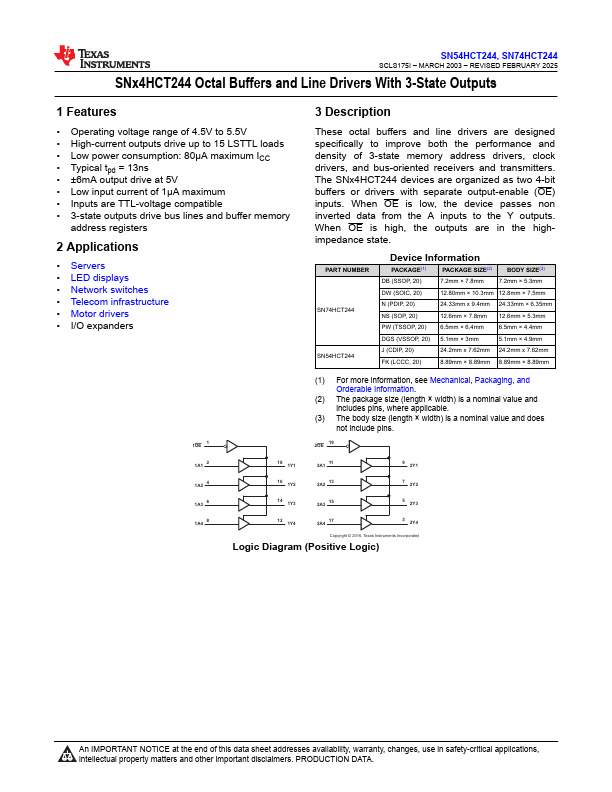

Preview of SN74HCT244 PDF

Datasheet Details

Part number:

SN74HCT244

Manufacturer:

Texas Instruments ↗

File Size:

1.99 MB

Description:

Octal buffers and line driver.
SN54HCT244, SN74HCT244 SCLS175G MARCH 2003 REVISED DECEMBER 2022 SNx4HCT244 Octal Buffers and Line Drivers With 3-State Outputs 1.

📁 Related Datasheet

SN74HCT240 OCTAL BUFFERS AND LINE DRIVER (Texas Instruments)

SN74HCT244-EP OCTAL BUFFER AND LINE DRIVER (Texas Instruments)

SN74HCT244-Q1 OCTAL BUFFER AND LINE DRIVER (Texas Instruments)

SN74HCT245 Octal Bus Transceiver (Texas Instruments)

SN74HCT257 QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXER (Texas Instruments)

SN74HCT273 Octal D-Type Flip-Flops (Texas Instruments)

SN74HCT00 QUADRUPLE 2-INPUT POSITIVE-NAND GATE (Texas Instruments)

SN74HCT00D QUADRUPLE 2-INPUT POSITIVE-NAND GATE (Texas Instruments)

SN74HCT00N QUADRUPLE 2-INPUT POSITIVE-NAND GATE (Texas Instruments)

SN74HCT02 QUADRUPLE 2-INPUT POSITIVE-NOR GATE (Texas Instruments)

TAGS

SN74HCT244 Octal Buffers and Line Driver Texas Instruments

Image Gallery

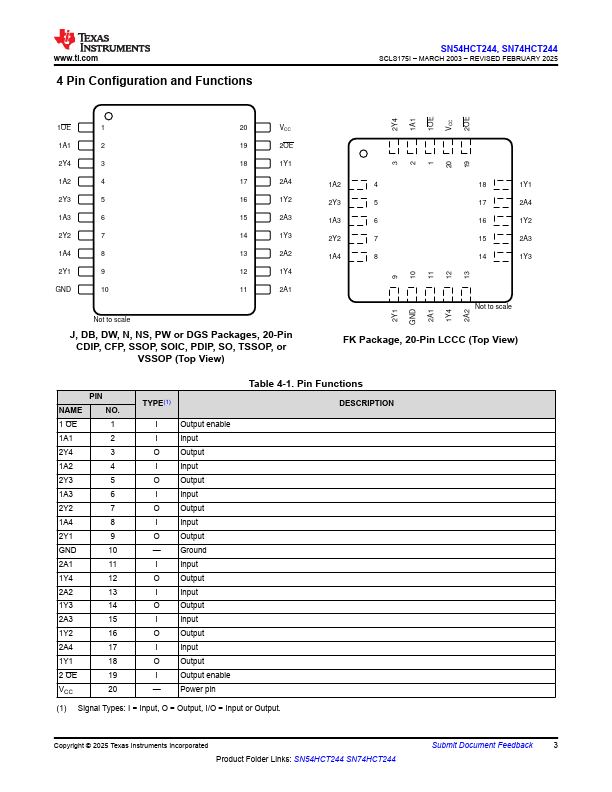

SN74HCT244 Datasheet Preview Page 2 SN74HCT244 Datasheet Preview Page 3
