SN74HCT273 Datasheet - Texas Instruments

SN74HCT273, Octal D-Type Flip-Flops

SN74HCT273 SCLS068H * NOVEMBER 1988 * REVISED FEBRUARY 2025 SNx4HCT273 Octal D-Type Flip-Flops With Clear 1 .
These devices are positive-edge-triggered D-type flipflops with a common enable input.

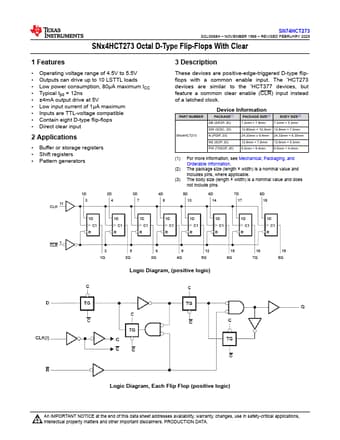

Datasheet Preview Page 1

SN74HCT273-etcTI.pdf

Preview of SN74HCT273 PDF
SN74HCT273 Datasheet Preview Page 2 SN74HCT273 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74HCT273

Manufacturer:

Texas Instruments ↗

File Size:

1.34 MB

Description:

Octal D-Type Flip-Flops

Features

* Operating voltage range of 4.5V to 5.5V
* Outputs can drive up to 10 LSTTL loads
* Low power consumption, 80µA maximum ICC
* Typical tpd = 12ns
* ±4mA output drive at 5V
* Low input current of 1µA maximum
* Inputs are TTL-voltage compatible

Applications

* Buffer or storage registers
* Shift registers
