SN74LV4040A-EP - 12-BIT ASYNCHRONOUS BINARY COUNTER

Texas Instruments

📥 Download Datasheet

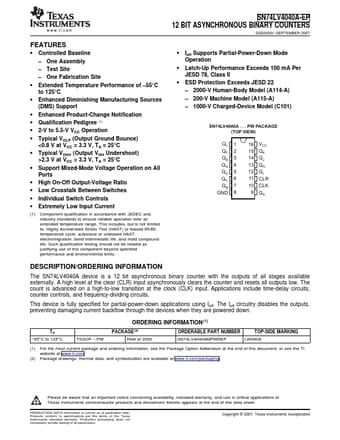

SN74LV4040A-EP Datasheet Preview — Preview of SN74LV4040A-EP PDF

Datasheet Details

Part number	SN74LV4040A-EP
Manufacturer	Texas Instruments
File Size	846.14 KB
Description	12-BIT ASYNCHRONOUS BINARY COUNTER
Datasheet	SN74LV4040A-EP-etcTI.pdf

SN74LV4040A-EP Product details

Description

ORDERING INFORMATION The SN74LV4040A device is a 12 bit asynchronous binary counter with the outputs of all stages available externally.A high level at the clear (CLR) input asynchronously clears the counter and resets all outputs low.The count is advanced on a high-to-low transition at the clock (CLK) input.Applications include time-delay circuits, counter controls, and frequency-dividing circuits.This device is fully specified for partial-power-down applications using Ioff.The Ioff circui

Features

1.
Controlled Baseline.
One Assembly.
Test Site.
One Fabrication Site.
Extended Temperature Performance of.
55°C to 125°C.
Enhanced Diminishing Manufacturing Sources (DMS) Support.
Enhanced Product-Change Notification.
Qualification Pedigree (1).
2-V to 5.5-V VCC Operation.
Typical VOLP (Output Ground Bounce) 2.3 V at V.
