SN74LV8T574 - Octal D-Type Edge-Triggered Flip-Flops

Texas Instruments

The SN74LV8T574 by Texas Instruments is a Octal D-Type Edge-Triggered Flip-Flops. Below is the official datasheet preview.

📥 Download Datasheet

SN74LV8T574 Octal D-Type Edge-Triggered Flip-Flops by Texas Instruments - Datasheet Preview — Official preview page of the SN74LV8T574 Octal D-Type Edge-Triggered Flip-Flops datasheet (Texas Instruments).

Datasheet Details

Part number	SN74LV8T574
Manufacturer	Texas Instruments
File Size	1.86 MB
Description	Octal D-Type Edge-Triggered Flip-Flops
Datasheet	SN74LV8T574-etcTI.pdf

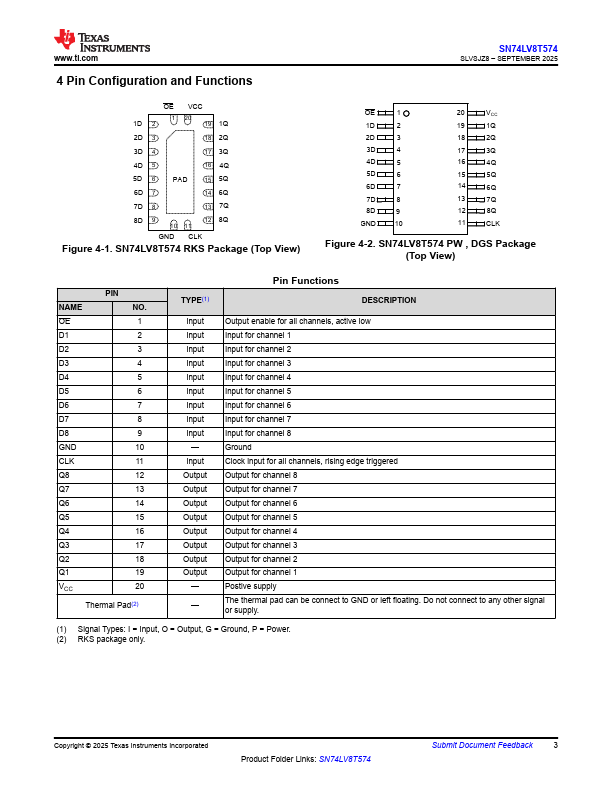

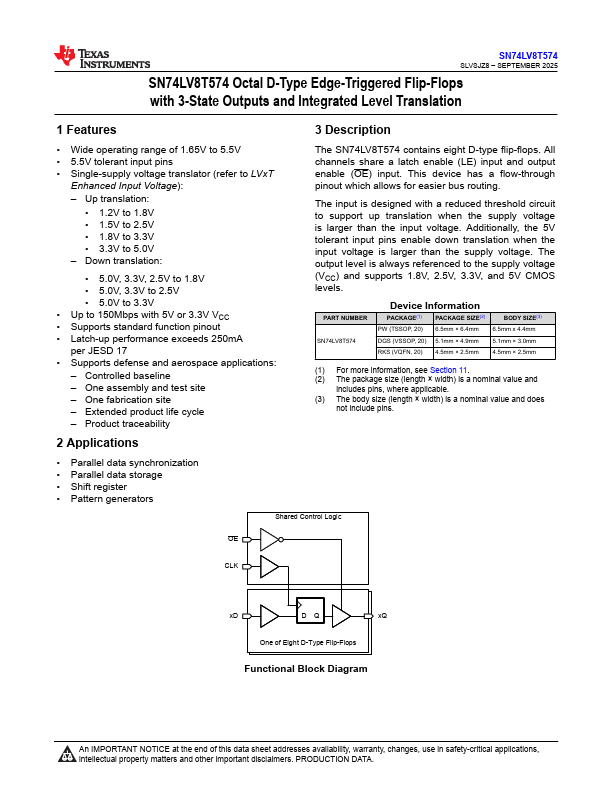

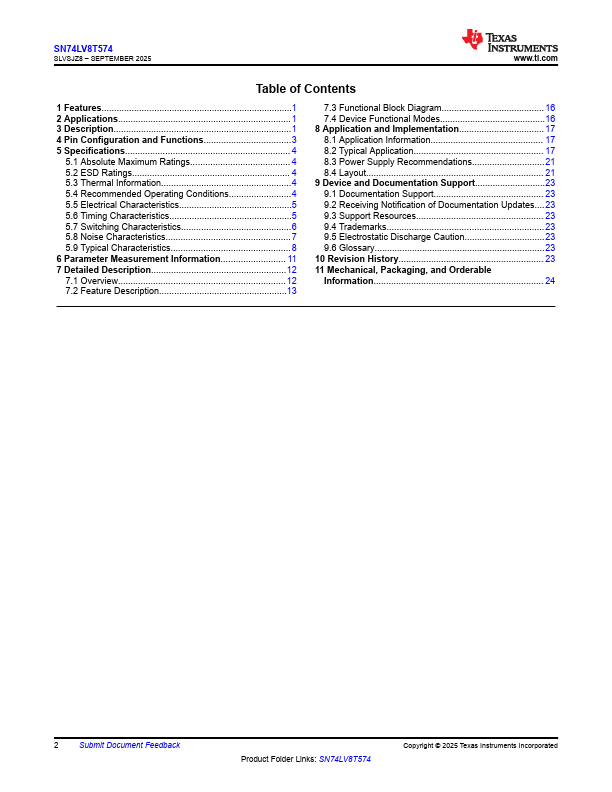

Additional preview pages of the SN74LV8T574 datasheet.

SN74LV8T574 Product details

Description

The SN74LV8T574 contains eight D-type flip-flops.

Features

Wide operating range of 1.65V to 5.5V.
5.5V tolerant input pins.
Single-supply voltage translator (refer to LVxT Enhanced Input Voltage):.
Up translation:.
1.2V to 1.8V.
1.5V to 2.5V.
1.8V to 3.3V.
3.3V to 5.0V.
Down translation:.
5.0V, 3.3V, 2.5V to 1.8V.
5.0V, 3.3V to 2.5V.
5.0V to 3.3V.
Up to 150Mbps with 5V or 3.3V VCC.
Supports standard function pinout.
Lat.
