SN74LVC1G14-EP - Single Schmitt-Trigger Inverter

Texas Instruments

📥 Download Datasheet

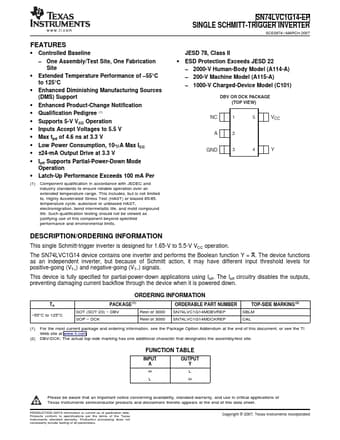

SN74LVC1G14-EP Datasheet Preview — Preview of SN74LVC1G14-EP PDF

Datasheet Details

Part number	SN74LVC1G14-EP
Manufacturer	Texas Instruments
File Size	904.17 KB
Description	Single Schmitt-Trigger Inverter
Datasheet	SN74LVC1G14-EP-etcTI.pdf

SN74LVC1G14-EP Product details

Description

ORDERING INFORMATION This single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC1G14 device contains one inverter and performs the Boolean function Y = A.The device functions as an independent inverter, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT ) signals.

Features

1.
Controlled Baseline.
One Assembly/Test Site, One Fabrication Site.
Extended Temperature Performance of.
55°C to 125°C.
Enhanced Diminishing Manufacturing Sources (DMS) Support.
Enhanced Product-Change Notification.
Qualification Pedigree (1).
Supports 5-V VCC Operation.
Inputs Accept Voltages to 5.5 V.
Max tpd of 4.6 ns at 3.3 V.
Low Power Consumption, 10-µA Max ICC.
±24-mA Output Drive.
