SN74LVT16245A - 3.3-V ABT 16-BIT BUS TRANSCEIVERS

Description

The ’LVT16245A are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

These devices can be used as two 8-bit transceivers or one 16-bit transceiver.

📥 Download Datasheet

Datasheet preview – SN74LVT16245A

Datasheet Details

Part number SN74LVT16245A
Manufacturer Texas Instruments
File Size 278.26 KB
Description 3.3-V ABT 16-BIT BUS TRANSCEIVERS
Datasheet download datasheet SN74LVT16245A Datasheet

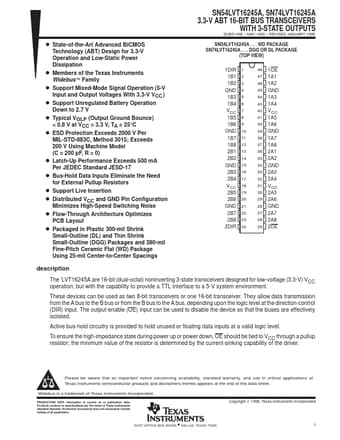

Additional preview pages of the SN74LVT16245A datasheet.
