SN74S244, SN74LS240 - Octal Buffers and Line Drivers

Texas Instruments

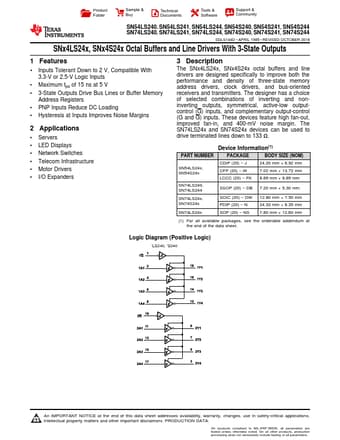

SN74S244 Datasheet Preview — This datasheet PDF includes multiple part numbers: SN74S244, SN74LS240. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SN74S244, SN74LS240
Manufacturer	Texas Instruments ↗
File Size	1.66 MB
Description	Octal Buffers and Line Drivers
Datasheet	SN74LS240-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: SN74S244, SN74LS240. Please refer to the document for exact specifications by model.

SN74S244 Product details

Description

The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Features

1 Inputs Tolerant Down to 2 V, Compatible With 3.3-V or 2.5-V Logic Inputs.
Maximum tpd of 15 ns at 5 V.
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers.
PNP Inputs Reduce DC Loading.
Hysteresis at Inputs Improves Noise Margins 2.
