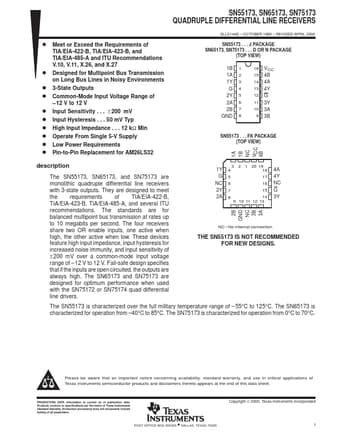

SN75173D Datasheet Preview Page 2 SN75173D Datasheet Preview Page 3

Datasheet Details

Part number:

SN75173D, SN75173

Manufacturer:

Texas Instruments ↗

File Size:

1.04 MB

Description:

Quadruple differential line receivers.

Note:

This datasheet PDF includes multiple part numbers: SN75173D, SN75173.
Please refer to the document for exact specifications by model.

SN75173D, SN75173, QUADRUPLE DIFFERENTIAL LINE RECEIVERS

The SN55173, SN65173, and SN75173 are monolithic quadruple differential line receivers with 3-state outputs.

They are designed to meet the requirements of TIA/EIA-422-B, TIA/EIA-423-B, TIA/EIA-485-A, and several ITU recommendations.

The standards are for balanced multipoint bus transmission at rates

SN55173, SN65173, SN75173 QUADRUPLE DIFFERENTIAL LINE RECEIVERS D Meet or Exceed the Requirements of TIA/EIA-422-B, TIA/EIA-423-B, and TIA/EIA-485-A and ITU Recommendations V.10, V.11, X.26, and X.27 D Designed for Multipoint Bus Transmission on Long Bus Lines in Noisy Environments D 3-State Outputs D Common-Mode Input Voltage Range of 12 V to 12 V D Input Sensitivity .

.

.

± 200 mV D Input Hysteresis .

.

.

50 mV Typ D High Input Impedance .

.

.

12 kΩ Min D Operate From Single 5-V Sup
