SN75ALS199 QUADRUPLE DIFFERENTIAL LINE RECEIVER

SN75ALS199 Description

SN75ALS199 QUADRUPLE DIFFERENTIAL LINE RECEIVER D Meets or Exceeds the Requirements of ITU Recommendations V.10, V.11, X.26, and X.27 D Designed to O.
The SN75ALS199 is a monolithic, quadruple line receiver with 3-state outputs designed using advanced, low-power, Schottky technology.

SN75ALS199 Features

* 3-state outputs that permit direct connection to a bus-organized system with a fail-safe design that ensures the ouptuts will always be high if the inputs are open. The device is optimized for balanced multipoint bus transmission at rates up to 20 megabits per second. The input features high-input i

SN75ALS199 Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessari

📥 Download Datasheet

Preview of SN75ALS199 PDF

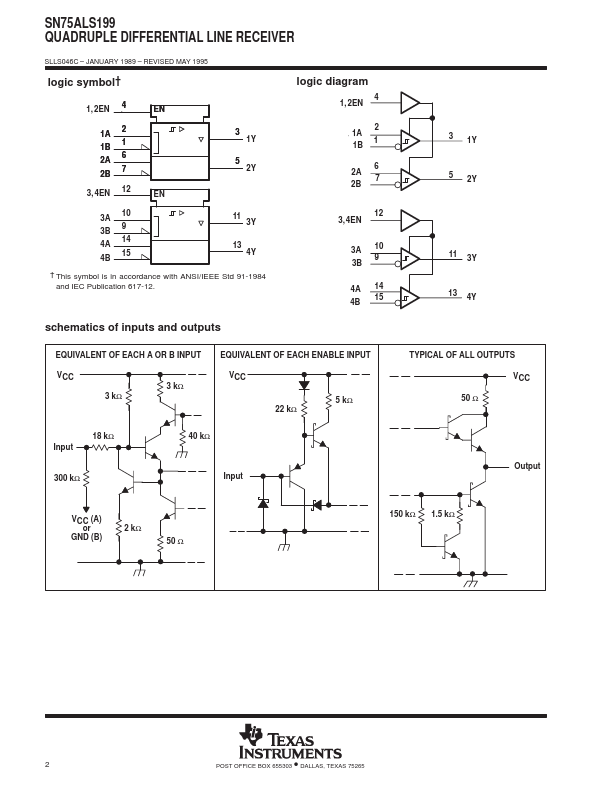

datasheet Preview Page 2 datasheet Preview Page 3
