SN75HVD06, SN75HVD05 Datasheet - Texas Instruments

SN75HVD06 High Output RS-485 Transceiver

The SN65HVD05, SN75HVD05, SN65HVD06, SN75HVD06, SN65HVD07, and SN75HVD07 combine a 3-state differential line driver and differential line receiver. They are designed for balanced data transmission and interoperate with ANSI TIA/EIA-485-A and ISO 8482E standardcompliant devices. The driver is designe.

SN75HVD06 Features

* Minimum differential output voltage of 2.5 V Into a 54-Ω load

* Open-circuit, short-circuit, and idle-bus failsafe receiver

* 1/8th Unit-load option available (Up to 256 nodes on the bus)

* Bus-pin ESD protection exceeds 16 kV HBM

* Driver output slew rate c

SN75HVD05-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN75HVD06, SN75HVD05. Please refer to the document for exact specifications by model.

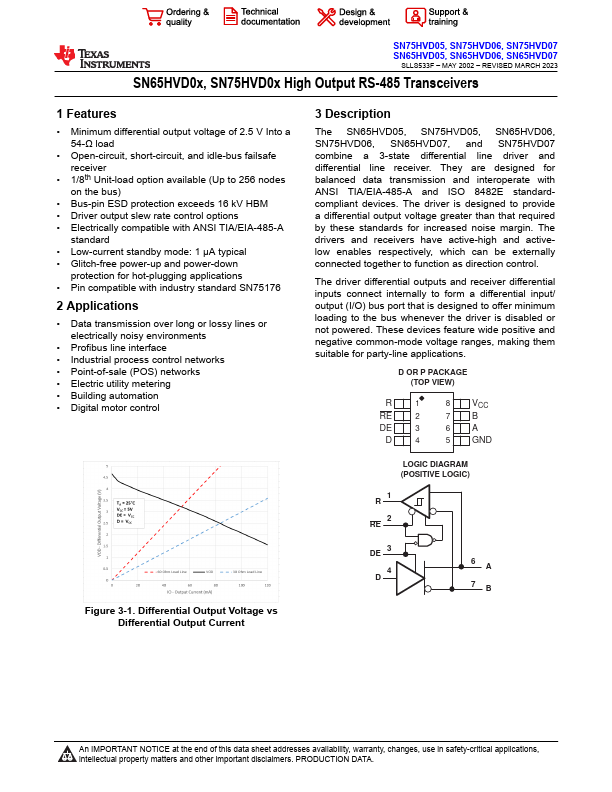

SN75HVD06 Datasheet Preview Page 2 SN75HVD06 Datasheet Preview Page 3

Datasheet Details

Part number:

SN75HVD06, SN75HVD05

Manufacturer:

Texas Instruments ↗

File Size:

1.21 MB

Description:

High output rs-485 transceiver.

Note:

This datasheet PDF includes multiple part numbers: SN75HVD06, SN75HVD05.
Please refer to the document for exact specifications by model.
