SN75LVCP601 Datasheet - Texas Instruments

SN75LVCP601 Two-Channel 6-Gbps SATA Redriver

The SN75LVCP601 device is a dual-channel, singlelane SATA redriver and signal conditioner supporting data rates up to 6 Gbps. The device complies with SATA physical link 2m and 3i specifications. The SN75LVCP601 operates from one 3.3-V supply and has 100-Ω line termination with a self-biasing featur.

SN75LVCP601 Features

* 1 1.5-, 3-, or 6-Gbps Two-Channel Redriver

* Integrated Output Squelch

* Programmable RX and TX Equalization and De-Emphasis Width Control

* Power-Save Feature Lowers Power by >80% in Auto Low-Power Mode

* Low Power

SN75LVCP601-etcTI.pdf

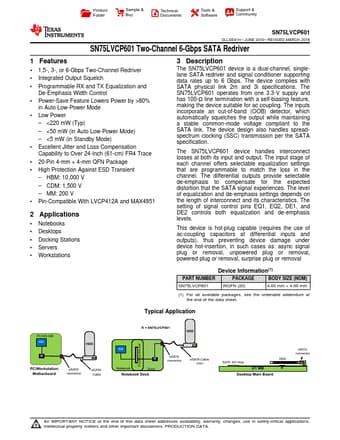

Preview of SN75LVCP601 PDF
SN75LVCP601 Datasheet Preview Page 2 SN75LVCP601 Datasheet Preview Page 3

Datasheet Details

Part number:

SN75LVCP601

Manufacturer:

Texas Instruments ↗

File Size:

6.20 MB

Description:

Two-channel 6-gbps sata redriver.
