TA550CI - Asynchronous Communications Element

Texas Instruments

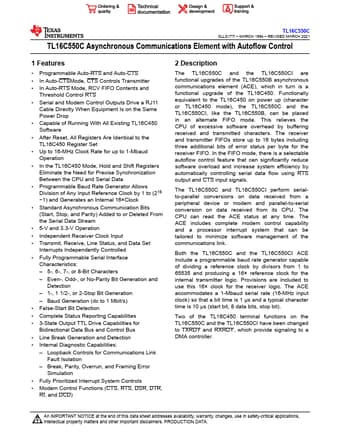

TA550CI Datasheet Preview — Preview of TA550CI PDF

Datasheet Details

Part number	TA550CI
Manufacturer	Texas Instruments ↗
File Size	2.54 MB
Description	Asynchronous Communications Element
Datasheet	TA550CI-etcTI.pdf

TA550CI Product details

Description

The TL16C550C and the TL16C550CI are functional upgrades of the TL16C550B asynchronous communications element (ACE), which in turn is a functional upgrade of the TL16C450.

Features

Programmable Auto-RTS and Auto-CTS.
In Auto-CTSMode, CTS Controls Transmitter.
In Auto-RTS Mode, RCV FIFO Contents and Threshold Control RTS.
Serial and Modem Control Outputs Drive a RJ11 Cable Directly When Equipment Is on the Same Power Drop.
Capable of Running With All Existing TL16C450 Software.
After Reset, All Registers Are Identical to the TL16C450 Register Set.
Up to 16-MHz Clock Rate for up to 1-Mbaud Operation.
In.
