TA550D - ACE

Texas Instruments

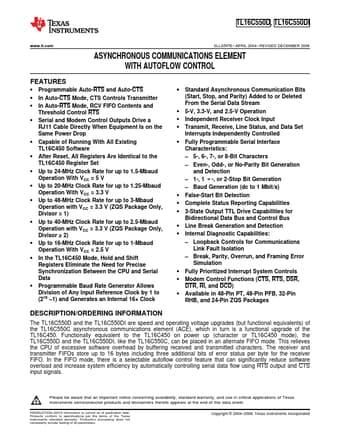

TA550D Datasheet Preview — Preview of TA550D PDF

Datasheet Details

Part number	TA550D
Manufacturer	Texas Instruments ↗
File Size	2.34 MB
Description	ACE
Datasheet	TA550D-etcTI.pdf

TA550D Product details

Description

ORDERING INFORMATION The TL16C550D and the TL16C550DI are speed and operating voltage upgrades (but functional equivalents) of the TL16C550C asynchronous communications element (ACE), which in turn is a functional upgrade of the TL16C450. Functionally equivalent to the TL16C450 on power up (character or TL16C450 mode), the TL16C550D and the TL16C550DI, like the TL16C550C, can be placed in an alternate FIFO mode.This relieves the CPU of excessive software overhead by buffering received and trans

Features

1.
Programmable Auto-RTS and Auto-CTS.
In Auto-CTS Mode, CTS Controls Transmitter.
In Auto-RTS Mode, RCV FIFO Contents and Threshold Control RTS.
Serial and Modem Control Outputs Drive a RJ11 Cable Directly When Equipment Is on the Same Power Drop.
Capable of Running With All Existing TL16C450 Software.
After Reset, All Registers Are Identical to the TL16C450 Register Set.
Up to 24-MHz Clock Rate for up to 1.5-Mbaud Operation With VC.
