TAS5611A Datasheet PDF - Texas Instruments 125W STEREO / 250W MONO HD ANALOG-INPUT POWER AMPLIFIER Specs

TAS5611A - 125W STEREO / 250W MONO HD ANALOG-INPUT POWER AMPLIFIER

Datasheet Summary

Description

The TAS5611A is a high performance analog input Class D amplifier with integrated closed loop feedback technology (known as PurePath™ HD) with the ability to drive up to 125W (1) Stereo into 4 to 8 Ω Speakers from a single 32.5V supply.

Features

1.
23 PurePath™ HD Enabled Integrated Feedback Provides:.
Signal Bandwidth up to 80kHz for High Frequency Content From HD Sources.
Ultralow 0.03% THD at 1W into 4Ω.
Flat THD at all Frequencies for Natural Sound.
80dB PSRR (BTL, No Input Signal).
>100dB (A weighted) SNR.
Click and Pop Free Startup.
Pin compatible with TAS5630, TAS5615 and TAS5613.
Multiple Configurations Possible on the Same PCB With Stuffing Options:.

Datasheet Details

Part number	TAS5611A
Manufacturer	Texas Instruments
File Size	2.30 MB
Description	125W STEREO / 250W MONO HD ANALOG-INPUT POWER AMPLIFIER
Datasheet	TAS5611A Datasheet

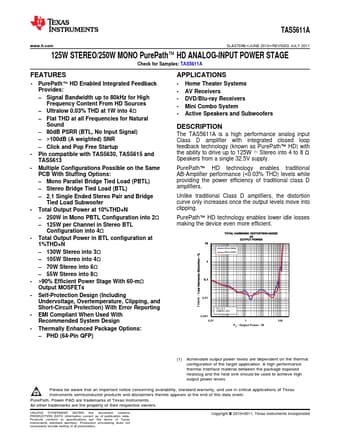

Additional preview pages of the TAS5611A datasheet.

📁 Similar Datasheet

TAS562J035P1A - Solid Tantalum Capacitors (Mallory)

TAS562J050P1A - Solid Tantalum Capacitors (Mallory)

TAS562J075P1A - Solid Tantalum Capacitors (Mallory)

TAS562J100P1A - Solid Tantalum Capacitors (Mallory)

TAS562K035P1A - Solid Tantalum Capacitors (Mallory)

TAS562K050P1A - Solid Tantalum Capacitors (Mallory)

TAS562K075P1A - Solid Tantalum Capacitors (Mallory)

TAS562K100P1A - Solid Tantalum Capacitors (Mallory)

TAS562M035P1A - Solid Tantalum Capacitors (Mallory)

TAS562M050P1A - Solid Tantalum Capacitors (Mallory)

Full PDF Text Transcription

Click to expand full text

TAS5611A www.ti.com SLAS709B – JUNE 2010 – REVISED JULY 2011 125W STEREO/250W MONO PurePath™ HD ANALOG-INPUT POWER STAGE Check for Samples: TAS5611A FEATURES 1 •23 PurePath™ HD Enabled Integrated Feedback Provides: – Signal Bandwidth up to 80kHz for High Frequency Content From HD Sources – Ultralow 0.03% THD at 1W into 4Ω – Flat THD at all Frequencies for Natural Sound – 80dB PSRR (BTL, No Input Signal) – >100dB (A weighted) SNR – Click and Pop Free Startup • Pin compatible with TAS5630, TAS5615 and TAS5613 • Multiple Configurations Possible on the Same PCB With Stuffing Options: – Mono Parallel Bridge Tied Load (PBTL) – Stereo Bridge Tied Load (BTL) – 2.
