TAS5612A - 125W STEREO / 250W MONO HD DIGITAL-INPUT POWER AMPLIFIER

Datasheet Summary

Description

The TAS5612A is a high performance digital input Class D amplifier with integrated closed loop feedback technology (known as PurePath™ HD) with the ability to drive up to 125W (1) Stereo into 4 to 8 Ω Speakers from a single 32.5V supply.

Features

1.
23 PurePath™ HD Enabled Integrated Feedback Provides:.
Signal Bandwidth up to 80kHz for High Frequency Content From HD Sources.
Ultralow 0.03% THD at 1W into 4Ω.
Ultralow 0.01% THD at 1W into 8Ω.
Flat THD at all Frequencies for Natural Sound.
80dB PSRR (BTL, No Input Signal).
>100dB (A weighted) SNR.
Click and Pop Free Startup.
Pin compatible with TAS5631, TAS5616 and TAS5614.
Multiple Configurations Poss.

Datasheet Details

Part number	TAS5612A
Manufacturer	Texas Instruments
File Size	2.12 MB
Description	125W STEREO / 250W MONO HD DIGITAL-INPUT POWER AMPLIFIER
Datasheet	TAS5612A Datasheet
Additional preview pages of the TAS5612A datasheet.

📁 Similar Datasheet

TAS562J035P1A - Solid Tantalum Capacitors (Mallory)

TAS562J050P1A - Solid Tantalum Capacitors (Mallory)

TAS562J075P1A - Solid Tantalum Capacitors (Mallory)

TAS562J100P1A - Solid Tantalum Capacitors (Mallory)

TAS562K035P1A - Solid Tantalum Capacitors (Mallory)

TAS562K050P1A - Solid Tantalum Capacitors (Mallory)

TAS562K075P1A - Solid Tantalum Capacitors (Mallory)

TAS562K100P1A - Solid Tantalum Capacitors (Mallory)

TAS562M035P1A - Solid Tantalum Capacitors (Mallory)

TAS562M050P1A - Solid Tantalum Capacitors (Mallory)

Full PDF Text Transcription

Click to expand full text

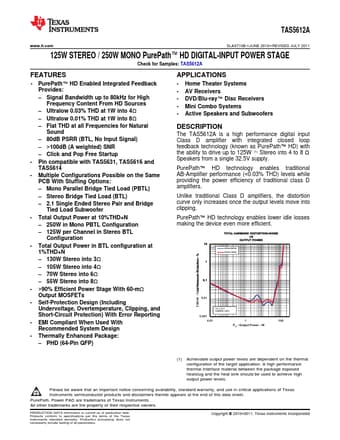

TAS5612A www.ti.com SLAS710B – JUNE 2010 – REVISED JULY 2011 125W STEREO / 250W MONO PurePath™ HD DIGITAL-INPUT POWER STAGE Check for Samples: TAS5612A FEATURES 1 •23 PurePath™ HD Enabled Integrated Feedback Provides: – Signal Bandwidth up to 80kHz for High Frequency Content From HD Sources – Ultralow 0.03% THD at 1W into 4Ω – Ultralow 0.01% THD at 1W into 8Ω – Flat THD at all Frequencies for Natural Sound – 80dB PSRR (BTL, No Input Signal) – >100dB (A weighted) SNR – Click and Pop Free Startup • Pin compatible with TAS5631, TAS5616 and TAS5614 • Multiple Configurations Possible on the Same PCB With Stuffing Options: – Mono Parallel Bridge Tied Load (PBTL) – Stereo Bridge Tied Load (BTL) – 2.
