TCA4311

Hot Swappable 2-Wire Bus Buffers

TCA4311 Features

* 1 Operating Power-Supply Voltage Range of 2.7-V to 5.5-V

* Supports Bidirectional Data Transfer of I2C Bus Signals

* SDA and SCL Lines Are Buffered Which Increases Fanout

* 1-V Precharge on All SDA and SCL Lines Prevents Corruption During Live Board Insertion and Rem

TCA4311 General Description

The TCA4311 is a hot swappable I2C bus buffer that supports I/O card insertion into a live backplane without corruption of the data and clock busses. Control circuitry prevents the backplane from being connected to the card until a stop command or bus idle occurs on the backplane without bus content.

TCA4311 Datasheet (1.05 MB)

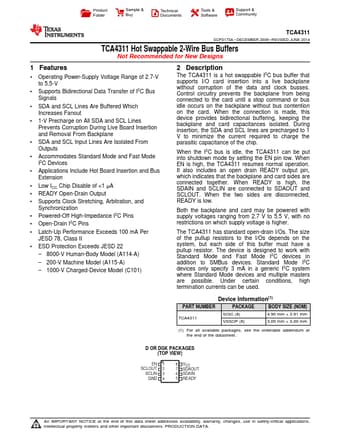

Preview of TCA4311 PDF

Datasheet Details

Part number:

TCA4311

Manufacturer:

Texas Instruments ↗

File Size:

1.05 MB

Description:

Hot swappable 2-wire bus buffers.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TCA4311 SCPS173A

* DECEMBER 2008

* REVISED J.
