THS8200 - All-Format Oversampled Component Video/PC Graphics D/A System

Texas Instruments

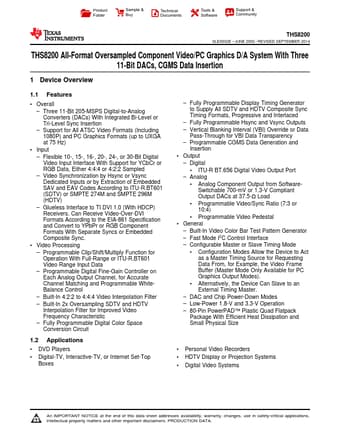

THS8200 Datasheet Preview — Preview of THS8200 PDF

Datasheet Details

Part number	THS8200
Manufacturer	Texas Instruments ↗
File Size	1.23 MB
Description	All-Format Oversampled Component Video/PC Graphics D/A System
Datasheet	THS8200-etcTI.pdf

THS8200 Product details

Description

The THS8200 device is a complete video back-end D/A solution for DVD players, personal video recorders and set-top boxes, or any system requiring the conversion of digital component video signals into the analog domain.

Features

1.
Overall.
Three 11-Bit 205-MSPS Digital-to-Analog Converters (DACs) With Integrated Bi-Level or Tri-Level Sync Insertion.
Support for All ATSC Video Formats (Including 1080P) and PC Graphics Formats (up to UXGA at 75 Hz).
Input.
Flexible 10-, 15-, 16-, 20-, 24-, or 30-Bit Digital Video Input Interface With Support for YCbCr or RGB Data, Either 4:4:4 or 4:2:2 Sampled.
Video Synchronization by Hsync or Vsync Dedicated Inputs or by Extraction.
