TL071B, TL071 - Low-Noise JFET-Input Operational Amplifiers

Texas Instruments

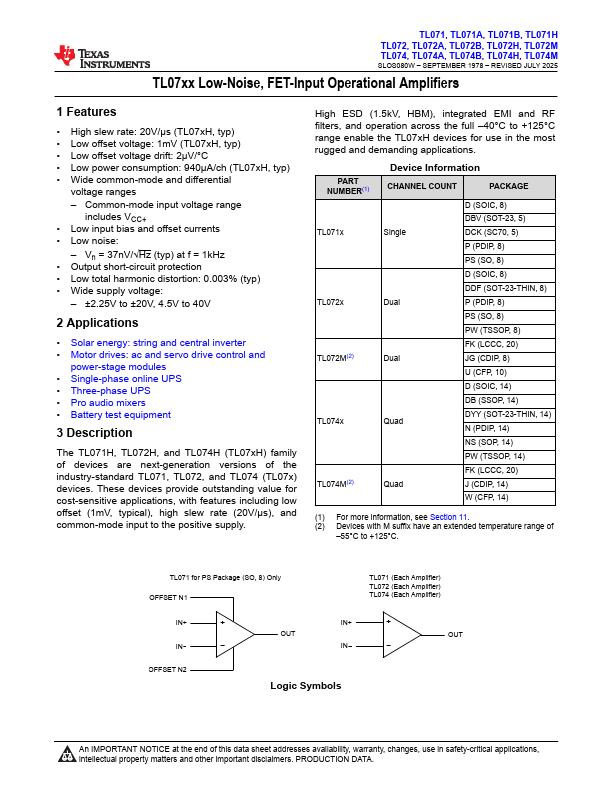

TL071B Datasheet Preview — This datasheet PDF includes multiple part numbers: TL071B, TL071. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TL071B, TL071
Manufacturer	Texas Instruments ↗
File Size	5.42 MB
Description	Low-Noise JFET-Input Operational Amplifiers
Datasheet	TL071-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TL071B, TL071. Please refer to the document for exact specifications by model.

TL071B Product details

Description

The TL07xH (TL071H, TL072H, and TL074H) family of devices are the next-generation versions of the industry-standard TL07x (TL071, TL072, and TL074) devices.

Features

High slew rate: 20 V/μs (TL07xH, typ).
Low offset voltage: 1 mV (TL07xH, typ).
Low offset voltage drift: 2 μV/°C.
Low power consumption: 940 μA/ch (TL07xH, typ).
Wide common-mode and differential voltage ranges.
Common-mode input voltage range includes VCC+.
Low input bias and offset currents.
Low noise: Vn = 18 nV/√Hz (typ) at f = 1 kHz.
Output short-circuit protection.
Low total harmonic distortion: 0.00.
