TL071H - Low-Noise JFET-Input Operational Amplifiers

Product Overview

Texas Instruments

Datasheet Details

Part number	TL071H
Manufacturer	Texas Instruments
File Size	5.73 MB
Description	Low-Noise JFET-Input Operational Amplifiers
Datasheet	TL071H Datasheet
Note	This datasheet PDF includes multiple part numbers: TL071H, TL071. Please refer to the document for exact specifications by model.

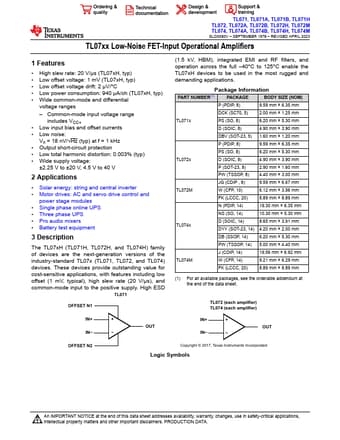

Additional preview pages of the TL071H datasheet.

Product details

Description

The TL07xH (TL071H, TL072H, and TL074H) family of devices are the next-generation versions of the industry-standard TL07x (TL071, TL072, and TL074) devices.

Features

High slew rate: 20 V/μs (TL07xH, typ).
Low offset voltage: 1 mV (TL07xH, typ).
Low offset voltage drift: 2 μV/°C.
Low power consumption: 940 μA/ch (TL07xH, typ).
Wide common-mode and differential voltage ranges.
Common-mode input voltage range includes VCC+.
Low input bias and offset currents.
Low noise: Vn = 18 nV/√Hz (typ) at f = 1 kHz.
Output short-circuit protection.
Low total harmonic distortion: 0.00.
