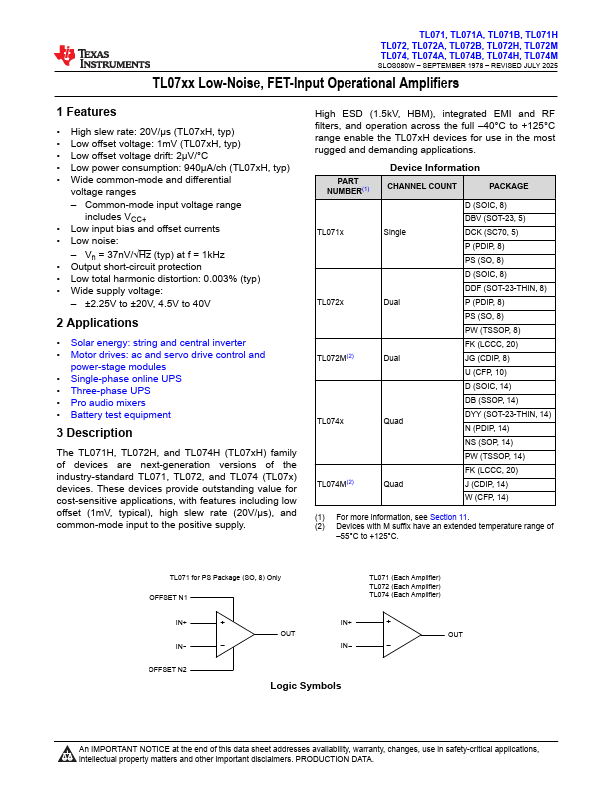

TL074 Datasheet, Amplifier, Texas Instruments

TL074 Features

• Amplifier
• High slew rate: 20 V/μs (TL07xH, typ)
• Low offset voltage: 1 mV (TL07xH, typ)
• Low offset voltage drift: 2 μV/°C
• Low power consumption: 940 μA/ch (

PDF File Details

Part number:

TL074

Manufacturer:

Texas Instruments ↗

File Size:

5.42MB

Download:

📄 Datasheet

Description:

Low-noise jfet-input operational amplifier. The TL07xH (TL071H, TL072H, and TL074H) family of devices are the next-generation versions of the industry-standard TL07x (TL071, TL0

TL074 Application

• Applications
• Solar energy: string and central inverter
• Motor drives: AC and servo drive control and power stage modules
