TL084 Datasheet, Amplifiers, Texas Instruments

TL084 Features

  • Amplifiers
  • High slew rate: 20V/μs (TL08xH, typ)
  • Low offset voltage: 1mV (TL08xH, typ)
  • Low offset voltage drift: 2 μV/°C
  • Low power consumption: 940μA/ch (TL0

PDF File Details

Part number:

TL084

Manufacturer:

Texas Instruments ↗

File Size:

5.17MB

Download:

📄 Datasheet

Description:

Jfet-input operational amplifiers. The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL

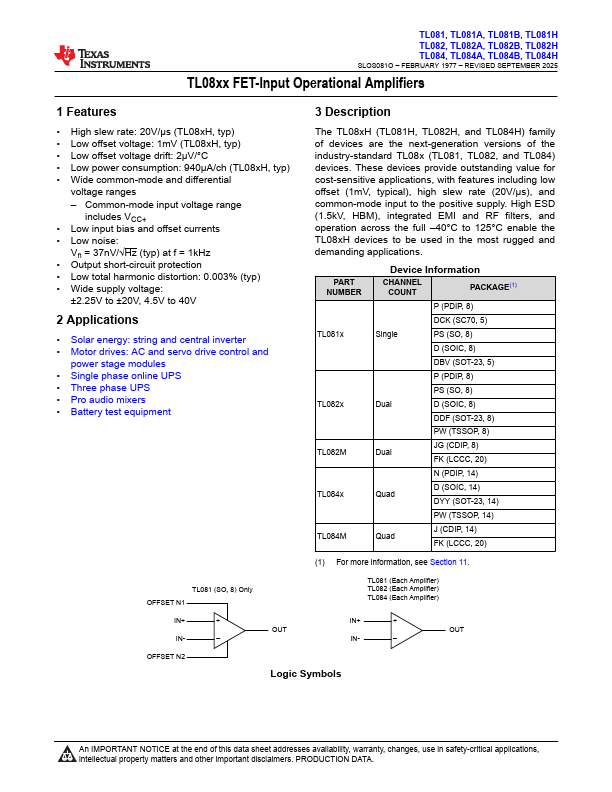

Datasheet Preview: TL084 📥 Download PDF (5.17MB)

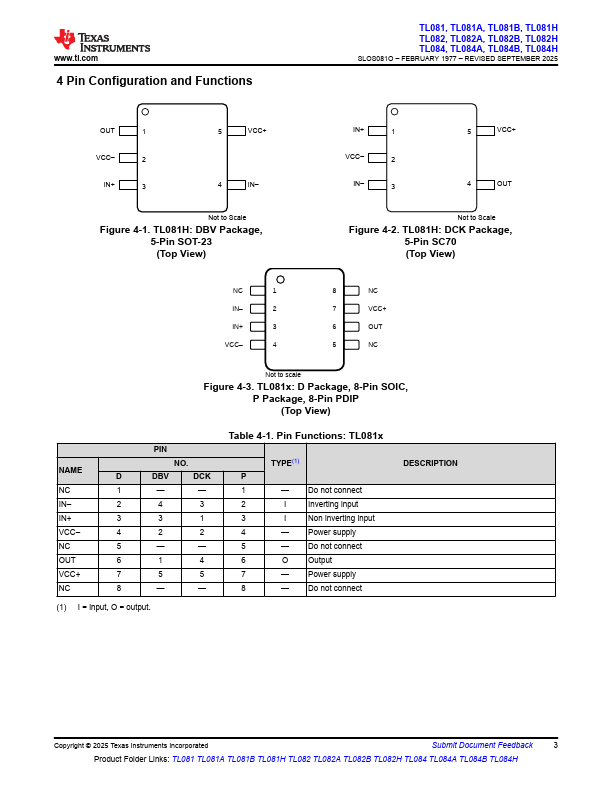

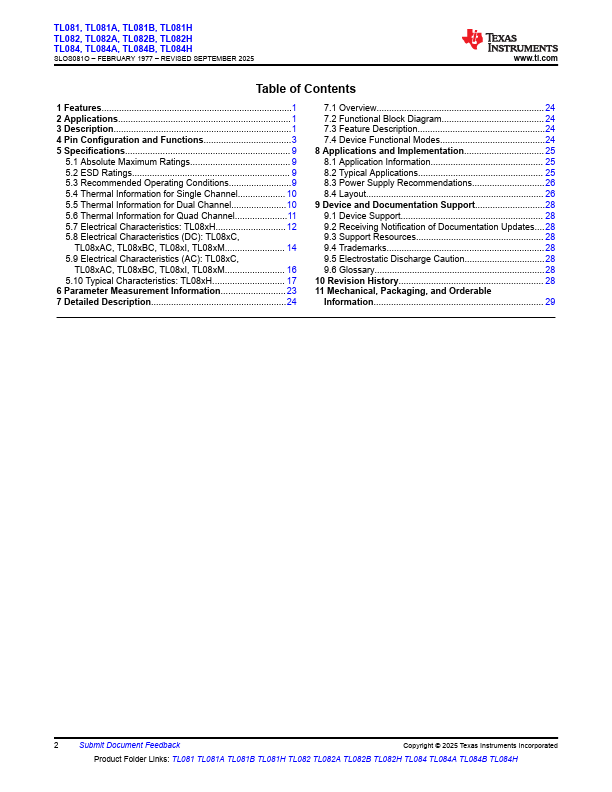

Page 2 of TL084 Page 3 of TL084

TL084 Application

  • Applications
  • Solar energy: string and central inverter
  • Motor drives: AC and servo drive control and power stage modules
