TLC2201-SP - LOW NOISE PRECISION OPERATIONAL AMPLIFIER

TLC2201-SP Description

TLC2201-SP www.ti.com SLOS710 * FEBRUARY 2011 CLASS V, ADVANCED LinCMOS™ LOW NOISE PRECISION OPERATIONAL AMPLIFIER Check for Samples: TLC2.
The TLC2201 is a precision, low-noise operational amplifier using Texas Instruments Advanced LinCMOS™ process.

TLC2201-SP Features

* 1
* 23 QML-V Qualifed SMD 5962-9088203V2A
* Low Input Offset Voltage: 400 μV Max
* Excellent Offset Voltage Stability With Temperature: 0.5 μV/°C Typ
* Rail-to-Rail Output Swing
* Low Input Bias Current: 1 pA Typ at TA = 25°C
* Common-Mode Input Voltage

TLC2201-SP Applications

* in either single-supply or split-supply configurations. The device inputs and outputs are designed to withstand
* 100-mA surge currents without sustaining latch-up. In addition, internal ESD-protection circuits prevent functional failures at voltages up to 2000 V as tested under MIL-PRF-38535

📥 Download Datasheet

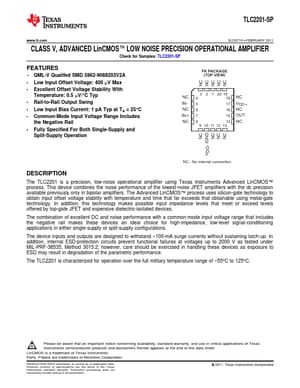

Preview of TLC2201-SP PDF
datasheet Preview Page 2 datasheet Preview Page 3
