TLK100

Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver

TLK100 Features

* 1

* Temperature From

* 40°C to 85°C

* Low Power Consumption, < 200mW Typical

* Cable Diagnostics

* Error-Free Operation up to 200 Meters Under Typical Conditions

* 3.3V MAC Interface

* Auto-MDIX for 10/100 Mb/s

* Energy Detection Mode

TLK100 General Description

The TLK100 is a single-port Ethernet PHY for 10BaseT and 100Base TX signaling. It integrates all the physical-layer functions needed to transmit and receive data on standard twisted-pair cables. This device supports the standard Media Independent Interface (MII) for direct connection to a Media Acce.

TLK100 Datasheet (1.38 MB)

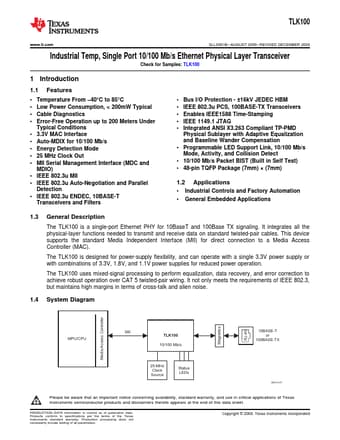

Preview of TLK100 PDF

Datasheet Details

Part number:

TLK100

Manufacturer:

Texas Instruments ↗

File Size:

1.38 MB

Description:

Single port 10/100 mb/s ethernet physical layer transceiver.
TLK100 www.ti.com SLLS931B

* AUGUST 2009

* REVISED DECEMBER 2009 Industrial Temp, Single Port 10/100 Mb/s Ethernet Physical Layer T.
