TMUX1219

2:1 General Purpose Switch

TMUX1219 Features

* 1 Rail to rail operation

* Bidirectional signal path

* 1.8 V Logic compatible

* Fail-safe logic

* Low on-resistance: 3 Ω

* Wide supply range: 1.08 V to 5.5 V

* -40°C to +125°C Operating temperature

* Low supply current: 4 nA

TMUX1219 General Description

The TMUX1219 is a general purpose complementary metal-oxide semiconductor (CMOS) single-pole double-throw (SPDT) switch. The TMUX1219 switches between two source inputs based on the state of the SEL pin. Wide operating supply of 1.08 V to 5.5 V allows for use in a broad array of applications from pe.

TMUX1219 Datasheet (1.44 MB)

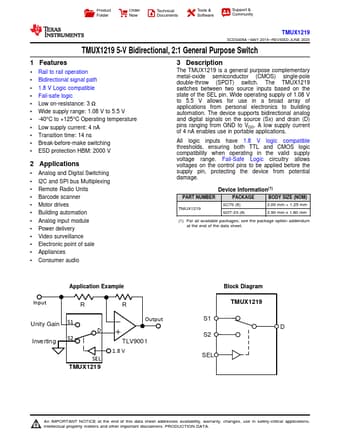

Preview of TMUX1219 PDF

Datasheet Details

Part number:

TMUX1219

Manufacturer:

Texas Instruments ↗

File Size:

1.44 MB

Description:

2:1 general purpose switch.
Product Folder Order Now Technical Documents Tools & Software Support & Community TMUX1219 SCDS409A

* MAY 2019

* REVISED JUNE 202.
