TMUX1237

2:1 (SPDT) General Purpose Switch

TMUX1237 Features

* 1 No Overshoot When Switching Inputs

* Rail-to-rail Operation

* Bidirectional Signal Path

* 1.8 V Logic Compatible

* Fail-safe Logic

* Low On-resistance: 3 Ω

* Wide Supply Range: 1.08 V to 5.5 V

* -40°C to +125°C Operating Temperature

TMUX1237 General Description

The TMUX1237 is a general purpose 2:1, single-pole double-throw (SPDT), switch that supports a wide operating range of 1.08 V to 5.5 V. The device supports bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from GND to VDD. The state of the select pin (SEL) contro.

TMUX1237 Datasheet (1.32 MB)

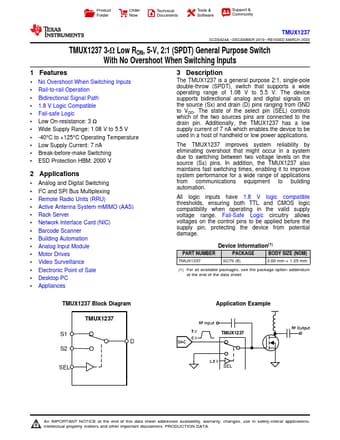

Preview of TMUX1237 PDF

Datasheet Details

Part number:

TMUX1237

Manufacturer:

Texas Instruments ↗

File Size:

1.32 MB

Description:

2:1 (spdt) general purpose switch.
Product Folder Order Now Technical Documents Tools & Software Support & Community TMUX1237 SCDS424A

* DECEMBER 2019

* REVISED MAR.
