General Description

The TMUX8211, TMUX8212, and TMUX8213 are modern high voltage capable analog switches with Latch-Up immunity.

Each device has four independently controllable 1:1, single-pole singlethrow (SPST) switch channels.

Key Features

  • High supply voltage capable:.
  • Dual supply: ±10 V to ±50 V.
  • Single supply: 10 V to 100 V.
  • Asymmetric dual supply operation.
  • Consistent parametric across supply voltages.
  • Latch-up immune.
  • High continuous current: 200 mA.
  • Low crosstalk:.
  • 110 dB.
  • Low input leakage: 10 pA.
  • Low On-Resistance flatness: 0.05 Ω.
  • Low On-Resistance: 5 Ω.
  • Low capacitance: 12 pF.
  • Removes need for addi.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TMUX8211-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
TMUX03155 TMUX03155 STS-3/STM-1 (AU-4) Multiplexer/Demultiplexer Agere Systems
TMUX03155 TMUX03155 STS-3/STM-1 (AU-4) Multiplexer/Demultiplexer Agere Systems
TMUX03155 TMUX03155 STS-3/STM-1 (AU-4) Multiplexer/Demultiplexer Agere Systems
TMU16N25Z N-channel MOSFET TRinno
TMU16N25ZG N-channel MOSFET TRinno

Other Datasheets by Texas Instruments

Part Number Description
TMUX8211 4-Channel Switches
TMUX8213 4-Channel Switches
TMUX1072 2-Channel 2:1 Analog Multiplexer
TMUX1101 1:1 (SPST) Precision Switch
TMUX1102 1:1 (SPST) Precision Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

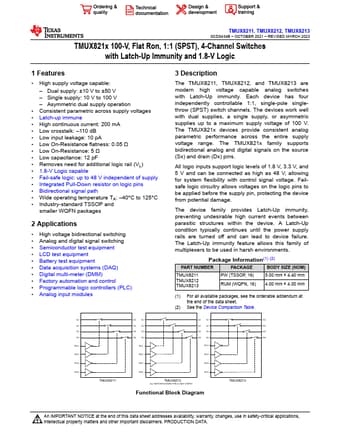

TMUX8211, TMUX8212, TMUX8213 SCDS434B – OCTOBER 2021 – REVISED MARCH 2023 TMUX821x 100-V, Flat Ron, 1:1 (SPST), 4-Channel Switches with Latch-Up Immunity and 1.8-V Logic 1 Features • High supply voltage capable: – Dual supply: ±10 V to ±50 V – Single supply: 10 V to 100 V – Asymmetric dual supply operation • Consistent parametric across supply voltages • Latch-up immune • High continuous current: 200 mA • Low crosstalk: –110 dB • Low input leakage: 10 pA • Low On-Resistance flatness: 0.05 Ω • Low On-Resistance: 5 Ω • Low capacitance: 12 pF • Removes need for additional logic rail (VL) • 1.
