TPA0233 Datasheet - Texas Instruments

TPA0233 2-W Mono Audio Power Amplifier

The TPA0233 is a 2-W mono bridge-tied-load (BTL) amplifier designed to drive speakers with as low as 4-Ω impedance. The mono signal is created by summing left and right inputs. The amplifier can be reconfigured on the fly to drive two stereo single-ended (SE) signals into head phones. This makes the.
D Ideal for Notebook Computers, PDAs, and Other Small Portable Audio Devices D 2 W Into 4 Ω From 5-V Supply D 0.6 W Into 4 Ω From 3-V Supply D Stereo Head Phone Drive D Mono (BTL) Signal Created by Summing Left and Right Signals D Wide Power Supply Compatibility 3 V to 5 V D Meets PC99 Portable Specs (target) D Low Supply Current 4 mA Typical at 5 V 3.3 mA Typical at 3 V D Shutdown Control . . . 1 µA Typical D Shutdown Pin is TTL Compatible D 40°C to 85°C Operating T.

TPA0233 Datasheet (1.60 MB)

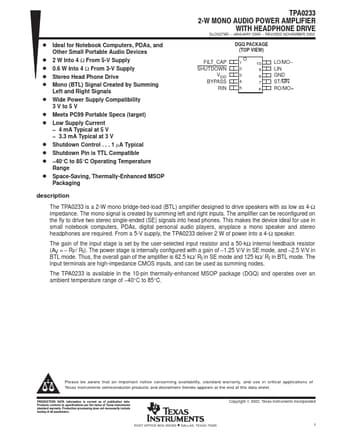

Preview of TPA0233 PDF

Datasheet Details

Part number:

TPA0233

Manufacturer:

Texas Instruments ↗

File Size:

1.60 MB

Description:

2-w mono audio power amplifier.
