TPA0505S

1W 3KVDC Isolated Single and Dual Output DC/DC Converters

TPA0505S Features

* RoHS compliant Operating temperature :-40℃ to 105℃ Power sharing on output Input voltage: 3.3V, 5V, 12V, 15V Efficiency up to 80% Single and dual output from a single input rail 3KVDC isolation Output voltage :3.3V,5V,9V,12V,15V,24V / ±5V,±9V,±12V,±15V,±24V Power density up to 0.85W/cm3 UL 94V-0 p

TPA0505S General Description

1W 3KVDC Isolated Single and Dual Output DC/DC Converters The TPA series are miniature, isolated 1W DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to.

TPA0505S Datasheet (589.24 KB)

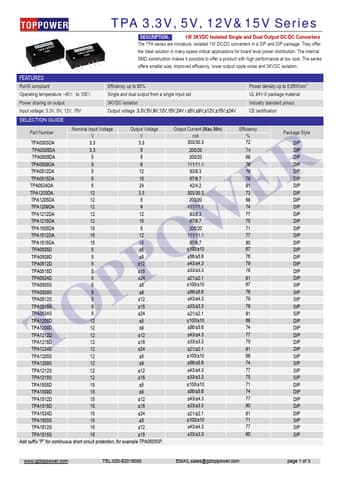

Preview of TPA0505S PDF

Datasheet Details

Part number:

TPA0505S

Manufacturer:

TOPPOWER

File Size:

589.24 KB

Description:

1w 3kvdc isolated single and dual output dc/dc converters.
