TPA0103

1.75-W 3-CHANNEL STEREO AUDIO POWER AMPLIFIER

TPA0103 Features

* Full power distortion levels of less than 0.25% THD+N into 4-Ω loads from a 5-V supply voltage are typical. Low-voltage application are also well served by the TPA0103 providing 800 mW to the center channel into 4-Ω loads with a 3.3-V supply voltage. Amplifier gain is externally configured by mean

TPA0103 General Description

The TPA0103 is a 3-channel audio power amplifier in a 24-pin TSSOP thermal package primarily targeted at desktop PC or notebook applications. The left/right (L/R) channel outputs are single ended (SE) and capable of delivering 500 mW of continuous RMS power per channel into 4-Ω loads. The center ch.

TPA0103 Datasheet (1.63 MB)

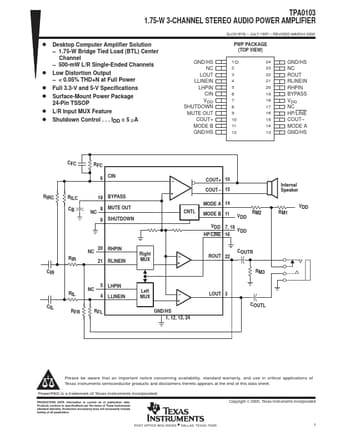

Preview of TPA0103 PDF

Datasheet Details

Part number:

TPA0103

Manufacturer:

Texas Instruments ↗

File Size:

1.63 MB

Description:

1.75-w 3-channel stereo audio power amplifier.
TPA0103 1.75-W 3-CHANNEL STEREO AUDIO POWER AMPLIFIER D Desktop Computer Amplifier Solution

* 1.75-W Bridge Tied Load (BTL) Center Channel
