TPA0102 1.5-W STEREO AUDIO POWER AMPLIFIER

The TPA0102 is a stereo audio power amplifier in a 24-pin TSSOP thermal package capable of delivering greater than 1.5 W of continuous RMS power per channel into 4-Ω loads. This device functionality provides a very efficient upgrade path from the TPA4860 and TPA4861 mono amplifiers where three sepa.

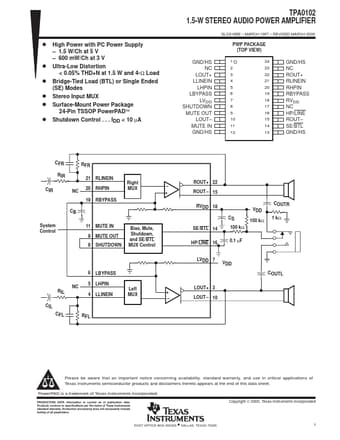

D High Power with PC Power Supply 1.5 W/Ch at 5 V 600 mW/Ch at 3 V D Ultra-Low Distortion < 0.05% THD+N at 1.5 W and 4-Ω Load D Bridge-Tied Load (BTL) or Single Ended (SE) Modes D Stereo Input MUX D Surface-Mount Power Package 24-Pin TSSOP PowerPAD™ D Shutdown Control . . . IDD < 10 µA TPA0102 1.5-W STEREO AUDIO POWER AMPLIFIER GND/HS NC LOUT+ LLINEIN LHPIN LBYPASS LVDD SHUTDOWN MUTE OUT LOUT MUTE IN GND/HS SLOS166E MARCH 1997 REVISED MARCH 200.

TPA0102 Features

* Full power distortion levels of less than 0.1% THD+N from a 5-V supply are typical. This provides significant improvement in fidelity for speech and music over the popular TPA4860/61 series. Low-voltage applications are also well served by the TPA0102 providing 600-mW per channel into 4-Ω loads wit

TPA0102 Datasheet (1.63 MB)
