TPA2000D4 - Stereo 2-W Class-D Audio Power Amplifier

Product Overview

Texas Instruments

Datasheet Details

Part number	TPA2000D4
Manufacturer	Texas Instruments
File Size	1.65 MB
Description	Stereo 2-W Class-D Audio Power Amplifier
Datasheet	TPA2000D4 Datasheet

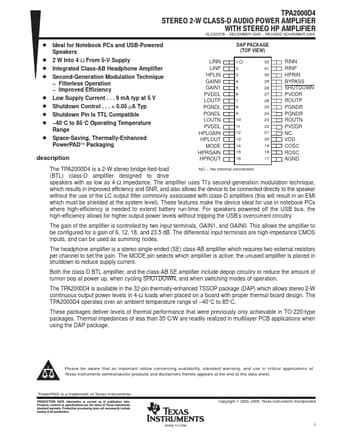

Additional preview pages of the TPA2000D4 datasheet.

Product details

Description

LINN LINP HPLIN GAIN0 GAIN1 PVDDL LOUTP PGNDL PGNDL LOUTN PVDDL HPLGAIN HPLOUT MODE HPRGAIN HPROUT DAP PACKAGE (TOP VIEW) 1 32 2 31 3 30 4 29 5 28 6 27 7 26 8 25 9 24 10 23 11 22 12 21 13 20 14 19 15 18 16 17 RINN RINP HPRIN BYPASS SHUTDOWN PVDDR ROUTP PGNDR PGNDR ROUTN PVDDR NC VDD COSC ROSC AGND The TPA2000D4 is a 2-W stereo bridge-tied-load NC No internal connection (BTL) class-D amplifier designed to drive speakers with as low as 4-Ω impedance.The amplifier uses TI’s second

Features

make the device ideal for use in notebook PCs where high-efficiency is needed to extend battery run-time. For speakers powered off the USB bus, the high-efficiency allows for higher output power levels without tripping the USB’s overcurrent circuitry. The gain of the amplifier is controlled by two input terminals, GAIN1, and GAIN0. This allows the amplifier to be configured for a gain of 6, 12, 18, and 23.5 dB. The differential input terminals are high-impedance CMOS inputs, and can be used a.
