TPA2001D2 1-W FILTERLESS STEREO CLASS-D AUDIO POWER AMPLIFIER

The TPA2001D2 is the third generation 5-V class-D amplifier from Texas Instruments. Improvements to previous generation devices include: lower supply current, lower noise floor, better efficiency, four different gain settings, smaller packaging, and fewer external components. The most significant a.

TPA2001D2 1-W FILTERLESS STEREO CLASS-D AUDIO POWER AMPLIFIER D Modulation Scheme Optimized to Operate Without a Filter D 1 W Into 8-Ω Speakers (THD+N< 0.4%) D < 0.08% THD+N at 0.5 W, 1 kHz, Into 8-Ω Load D Extremely Efficient 3rd Generation 5-V Class-D Technology: Low Supply Current (No Filter) . . . 8 mA Low Supply Current (Filter) . . . 15 mA Low Shutdown Current . . . 1 µA Low Noise Floor . . . 56 µVRMS Maximum Efficiency Into 8 Ω, 75

TPA2001D2 Datasheet (370.47 KB)

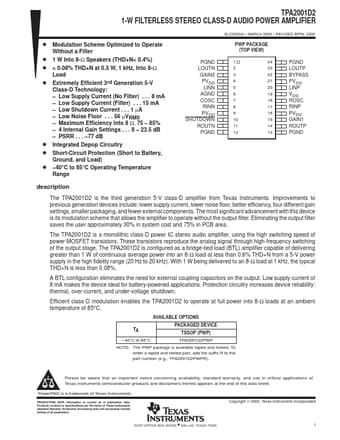

TPA2001D2 Datasheet Preview — Preview of TPA2001D2 PDF

Datasheet Details

Part number:

TPA2001D2

Manufacturer:

Texas Instruments ↗

File Size:

370.47 KB

Description:

1-w filterless stereo class-d audio power amplifier.
