TPA6011A4 3-W STEREO AUDIO POWER AMPLIFIER

TPA6011A4 Description

www.ti.com TPA6011A4 SLOS392A * FEBRUARY 2002 * REVISED JULY 2004 3-W STEREO AUDIO POWER AMPLIFIER WITH ADVANCED DC VOLUME CONTROL F.
The TPA6011A4 is a stereo audio power amplifier that drives 3 W/channel of continuous RMS power into a 3-Ω load.

TPA6011A4 Features

* Advanced DC Volume Control With 2-dB Steps From -40 dB to 20 dB
* Fade Mode
* Maximum Volume Setting for SE Mode
* Adjustable SE Volume Control Referenced to BTL Volume Control
* 3 W Into 3-Ω Speakers
* Stereo Input MUX
* Differential Inputs

TPA6011A4 Applications

* Notebook PC
* LCD Monitors
* Pocket PC APPLICATION CIRCUIT 1 PGND 24 ROUT+ 23 SE/BTL Power Supply CS 2 ROUT3 PVDD 22 HP/LINE Ci Right HP Audio Source Ci 4 RHPIN 21 VOLUME Right Line Audio Source 5 RLINEIN Ci 20 SEDIFF 6 RIN 19 SEMAX CS VDD 7 VDD 18 AGND

📥 Download Datasheet

Preview of TPA6011A4 PDF

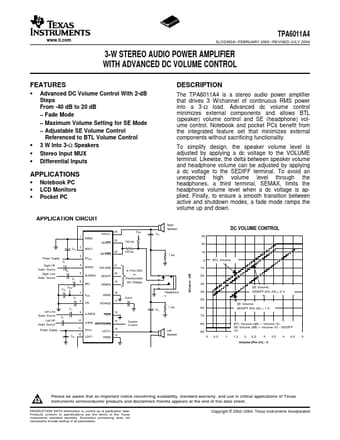

datasheet Preview Page 2 datasheet Preview Page 3
