TPA6020A2

2.8-W STEREO FULLY DIFFERENTIAL AUDIO POWER AMPLIFIER

TPA6020A2 Features

* Ideal for Notebook PCs

* Fully Differential Architecture and High PSRR (-80 dB) Provide Excellent RF Rectification Immunity

* 2.8 W Into 3 Ω From a 5-V Supply at THD = 10% (Typical)

* Very Low Crosstalk:

* -100 dB Typical at 5 V, 3 Ω

* 2.5-V to 5.5-V

TPA6020A2 General Description

The TPA6020A2 is a 2.8-W stereo bridge-tied load (BTL) amplifier designed to drive stereo speakers with at least 3-Ω impedance. The device operates from 2.5 V to 5.5 V, drawing only 8 mA of quiescent supply current. The feedback resistors are internal, allowing the gain to be set with only two input.

TPA6020A2 Datasheet (2.74 MB)

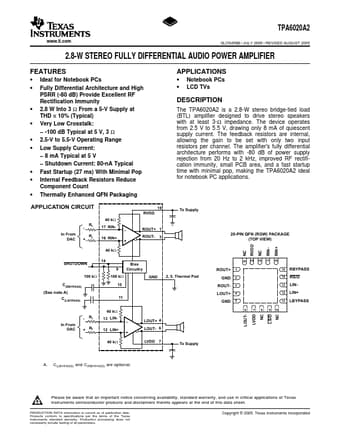

Preview of TPA6020A2 PDF

Datasheet Details

Part number:

TPA6020A2

Manufacturer:

Texas Instruments ↗

File Size:

2.74 MB

Description:

2.8-w stereo fully differential audio power amplifier.
