TPA6102A2 50-mW Ultralow-Voltage Fixed-Gain Stereo Headphone Audio Power Amplifier

TPA6102A2 Description

TPA6102A2 50ĆmW ULTRALOWĆVOLTAGE, FIXEDĆGAIN STEREO HEADPHONE AUDIO POWER AMPLIFIER SLOS324B * JUNE 2000 * REVISED SEPTEMBER 2004 D 5.
The TPA6102A2 is a stereo audio power amplifier packaged in either an 8-pin SOIC package or an 8-pin MOSP package capable of delivering 50 mW of conti.

TPA6102A2 Applications

* because of its low-supply current, shutdown current, and THD+N. To obtain the low-supply voltage range, the TPA6102A2 biases BYPASS to VDD/4. When driving a 16-Ω load with 40-mW output power from 3.3 V, THD+N is 0.08% at 1 kHz, and less than 0.2% across the audio band of 20 Hz to 20 kHz. For 30 mW i

📥 Download Datasheet

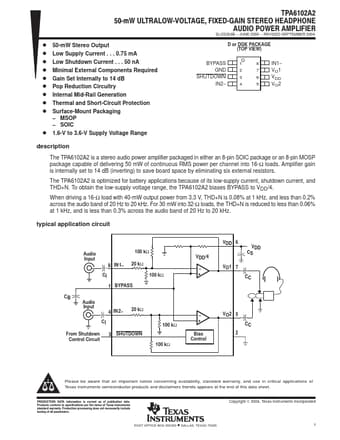

Preview of TPA6102A2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA6102A2
Manufacturer
Texas Instruments ↗
File Size
1.10 MB
Datasheet
TPA6102A2-etcTI.pdf
Description
50-mW Ultralow-Voltage Fixed-Gain Stereo Headphone Audio Power Amplifier
