TPA6110A2

150-mW STEREO AUDIO POWER AMPLIFIER

TPA6110A2 Features

* 1

* 2 150 mW Stereo Output

* PC Power Supply Compatible

* Fully Specified for 3.3 V and 5 V Operation

* Operation to 2.5 V

* Pop Reduction Circuitry

* Internal Mid-Rail Generation

* Thermal and Short-Circuit Protection

* Surface-Mount P

TPA6110A2 General Description

The TPA6110A2 is a stereo audio power amplifier packaged in an 8-pin PowerPAD™ MSOP package capable of delivering 150 mW of continuous RMS power per channel into 16-Ω loads. Amplifier gain is externally configured by means of two resistors per input channel and does not require external compensation.

TPA6110A2 Datasheet (1.14 MB)

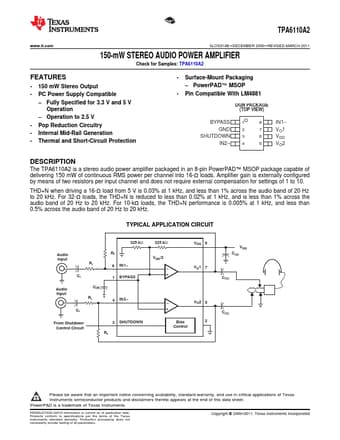

Preview of TPA6110A2 PDF

Datasheet Details

Part number:

TPA6110A2

Manufacturer:

Texas Instruments ↗

File Size:

1.14 MB

Description:

150-mw stereo audio power amplifier.
TPA6110A2 www.ti.com SLOS314B

* DECEMBER 2000

* REVISED MARCH 2011 150-mW STEREO AUDIO POWER AMPLIFIER Check for Samples: TPA6110A2 .
