TPA6204A1

1.7-W Mono Fully Differential Audio Power Amplifier

TPA6204A1 Features

* 1 Designed for Wireless or Cellular Handsets and PDAs

* 1.7 W Into 8 Ω From a 5-V Supply at THD = 10% (Typical)

* Low Supply Current: 4 mA Typical at 5 V

* Shutdown Current: 0.01 µA Typical

* Fast Start-Up With Minimal Pop

* Only Three External Compon

TPA6204A1 General Description

The TPA6204A1 device (sometimes referred to as TPA6204) is a 1.7-W mono fully-differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming only 20 mm2 total printed-circuit board (PCB) area in most applications. The device operates from 2.5 V to 5.5 V, drawing only .

TPA6204A1 Datasheet (1.39 MB)

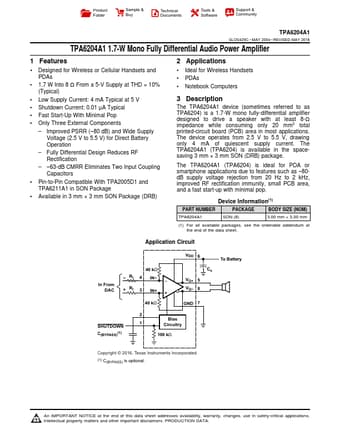

Preview of TPA6204A1 PDF

Datasheet Details

Part number:

TPA6204A1

Manufacturer:

Texas Instruments ↗

File Size:

1.39 MB

Description:

1.7-w mono fully differential audio power amplifier.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPA6204A1 SLOS429C

* MAY 2004

* REVISED MAY .
