TPD8E003 - 8-Channel ESD Protection Diode

Texas Instruments

📥 Download Datasheet

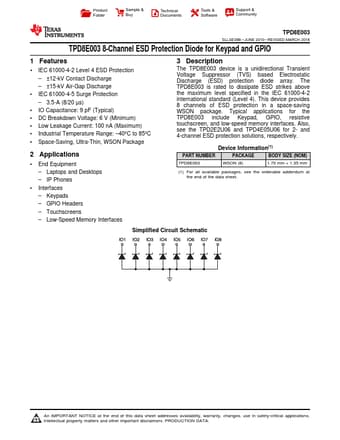

TPD8E003 Datasheet Preview — Preview of TPD8E003 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPD8E003
Manufacturer	Texas Instruments
File Size	1.25 MB
Description	8-Channel ESD Protection Diode
Datasheet	TPD8E003-etcTI.pdf

TPD8E003 Product details

Description

The TPD8E003 device is a unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array.

Features

1 IEC 61000-4-2 Level 4 ESD Protection.
±12-kV Contact Discharge.
±15-kV Air-Gap Discharge.
IEC 61000-4-5 Surge Protection.
3.5-A (8/20 µs).
IO Capacitance: 9 pF (Typical).
DC Breakdown Voltage: 6 V (Minimum).
Low Leakage Current: 100 nA (Maximum).
Industrial Temperature Range:.
40ºC to 85ºC.
Space-Saving, Ultra-Thin, WSON Package 2.
