TPD8S300

USB Type-C Port Protector

TPD8S300 Features

* 1 4-Channels of Short-to-VBUS Overvoltage Protection (CC1, CC2, SBU1, SBU2): 24-VDC Tolerant

* 8-Channels of IEC 61000-4-2 ESD Protection (CC1, CC2, SBU1, SBU2, DP_T, DM_T, DP_B, DM_B)

* CC1, CC2 Overvoltage Protection FETs 600 mA capable for passing VCONN power

* CC

TPD8S300 General Description

The TPD8S300 is a single chip USB Type-C port protection solution that provides 20-V Short-to-VBUS overvoltage and IEC ESD protection. Since the release of the USB Type-C connector, many products and accessories for USB Type-C have been released which do not meet the USB Type-C specification. One ex.

TPD8S300 Datasheet (1.57 MB)

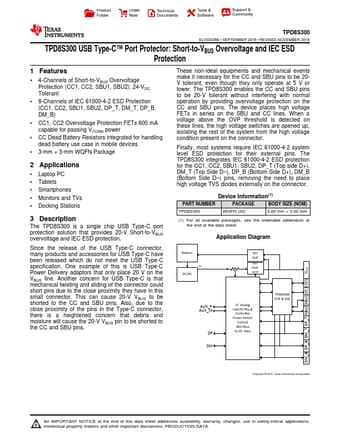

Preview of TPD8S300 PDF

Datasheet Details

Part number:

TPD8S300

Manufacturer:

Texas Instruments ↗

File Size:

1.57 MB

Description:

Usb type-c port protector.
Product Folder Order Now Technical Documents Tools & Software Support & Community TPD8S300 SLVSDD6B

* SEPTEMBER 2016

* REVISED NO.
