TPS22916B - Ultra-Low Leakage Load Switch

Texas Instruments

📥 Download Datasheet

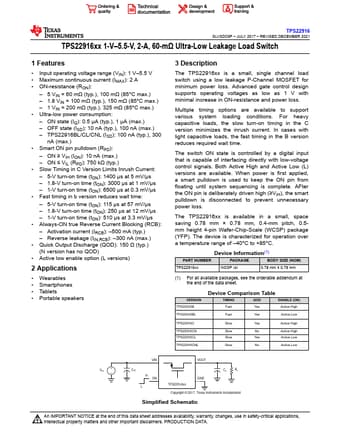

TPS22916B Datasheet Preview — Preview of TPS22916B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPS22916B
Manufacturer	Texas Instruments ↗
File Size	1.35 MB
Description	Ultra-Low Leakage Load Switch
Datasheet	TPS22916B-etcTI.pdf

TPS22916B Product details

Description

The TPS22916xx is a small, single channel load switch using a low leakage P-Channel MOSFET for minimum power loss.

Features

Input operating voltage range (VIN): 1 V.
5.5 V.
Maximum continuous current (IMAX): 2 A.
ON-resistance (RON):.
5 VIN = 60 mΩ (typ. ), 100 mΩ (85°C max. ).
1.8 VIN = 100 mΩ (typ. ), 150 mΩ (85°C max. ).
1 VIN = 200 mΩ (typ. ), 325 mΩ (85°C max. ).
Ultra-low power consumption:.
ON state (IQ): 0.5 µA (typ. ), 1 µA (max. ).
OFF state (ISD): 10 nA (typ. ), 100 nA (max. ).
TPS22916BL/CL/CNL (ISD): 100 nA (typ. ), 30.
