TPS3824

Voltage Monitor

TPS3824 Features

* Power-on reset generator with a fixed delay time of 200 ms (TPS3823, TPS3824, TPS3825, and TPS3828) or 25 ms (TPS3820)

* Manual reset input (TPS3820, TPS3823, TPS3825, and TPS3828)

* Reset output available in active-low (TPS3820, TPS3823, TPS3824, and TPS3825), active-high

TPS3824 General Description

The TPS382x family of supervisors provide circuit initialization and timing supervision, primarily for DSP and processor-based systems. During power on, RESET asserts when the supply voltage VDD becomes greater than 1.1 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET active.

TPS3824 Datasheet (1.12 MB)

Preview of TPS3824 PDF

Datasheet Details

Part number:

TPS3824

Manufacturer:

Texas Instruments ↗

File Size:

1.12 MB

Description:

Voltage monitor.
TPS3820, TPS3823, TPS3824, TPS3825, TPS3828 SLVS165N

* APRIL 1998

* REVISED JULY 2022 TPS382x Voltage Monitor With Watchdog Timer 1 F.

📁 Related Datasheet

TPS3820 Voltage Monitor (Texas Instruments)

TPS3820-Q1 Voltage Monitor (Texas Instruments)

TPS3823 Voltage Monitor (Texas Instruments)

TPS3823-Q1 Voltage Monitor (Texas Instruments)

TPS3823A Voltage Monitor (Texas Instruments)

TPS3824-Q1 Voltage Monitor (Texas Instruments)

TPS3825 Voltage Monitor (Texas Instruments)

TPS3825-Q1 Voltage Monitor (Texas Instruments)

TPS3828 Voltage Monitor (Texas Instruments)

TPS3828-Q1 Voltage Monitor (Texas Instruments)

TAGS

TPS3824 Voltage Monitor Texas Instruments

Image Gallery

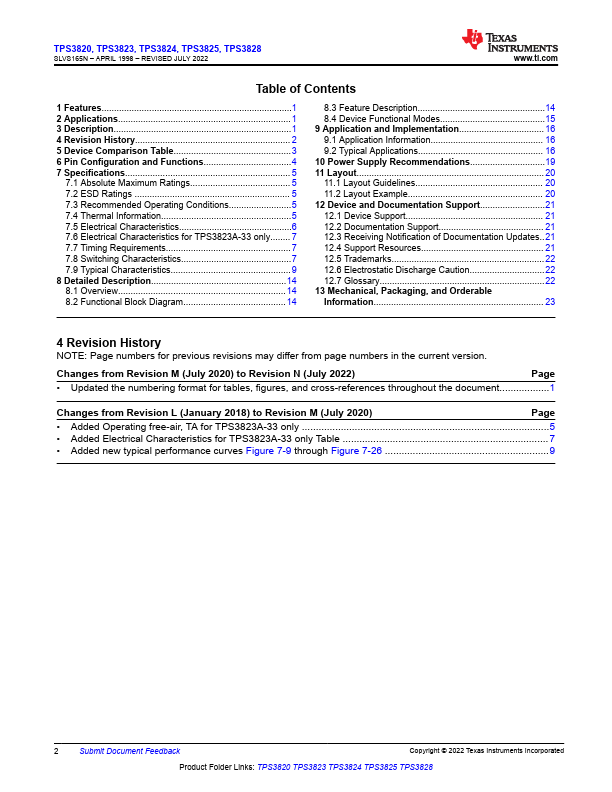

TPS3824 Datasheet Preview Page 2 TPS3824 Datasheet Preview Page 3
