TPS40000 - Synchronous Buck Controller

TPS40000 Description

TPS40000, TPS40001 TPS40002, TPS40003 TPS40004, TPS40005 SLUS507D * JANUARY 2002 * REVISED NOVEMBER 2005 LOWĆINPUT VOLTAGEĆMODE SYNCH.
The TPS4000x are controllers for low-voltage, non-isolated synchronous buck regulators.

TPS40000 Features

* D Operating Input Voltage 2.25 V to 5.5 V D Output Voltage as Low as 0.7 V D 1% Internal 0.7 V Reference D Predictive Gate Drivet N-Channel MOSFET Drivers for Higher Efficiency D Externally Adjustable Soft-Start and Overcurrent Limit D Source-Only Current or Source/Sink Current D Versions for Starti

📥 Download Datasheet

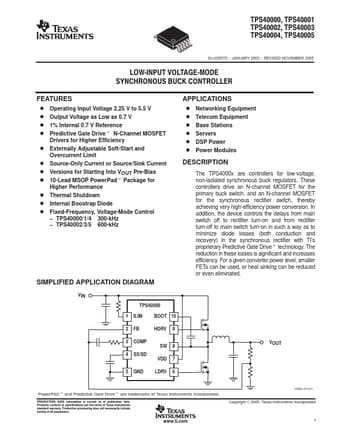

Preview of TPS40000 PDF
datasheet Preview Page 2 datasheet Preview Page 3
