TPS61001 - Single- and Dual-Cell Boost Converter

Product Overview

Texas Instruments

Datasheet Details

Part number	TPS61001
Manufacturer	Texas Instruments
File Size	838.71 KB
Description	Single- and Dual-Cell Boost Converter
Datasheet	TPS61001 Datasheet
Note	This datasheet PDF includes multiple part numbers: TPS61001, TPS61000. Please refer to the document for exact specifications by model.

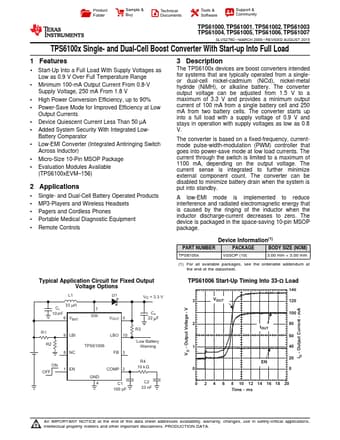

Additional preview pages of the TPS61001 datasheet.

Product details

Description

The TPS6100x devices are boost converters intended for systems that are typically operated from a singleor dual-cell nickel-cadmium (NiCd), nickel-metal hydride (NiMH), or alkaline battery.

Features

1 Start-Up Into a Full Load With Supply Voltages as Low as 0.9 V Over Full Temperature Range.
Minimum 100-mA Output Current From 0.8-V Supply Voltage, 250 mA From 1.8 V.
High Power Conversion Efficiency, up to 90%.
Power-Save Mode for Improved Efficiency at Low Output Currents.
Device Quiescent Current Less Than 50 µA.
Added System Security With Integrated Low- Battery Comparator.
Low-EMI Converter (Integrated Antiringing Switch Acro.
