TPS61005 Datasheet - Texas Instruments

TPS61005 Single- and Dual-Cell Boost Converter

The TPS6100x devices are boost converters intended for systems that are typically operated from a singleor dual-cell nickel-cadmium (NiCd), nickel-metal hydride (NiMH), or alkaline battery. The converter output voltage can be adjusted from 1.5 V to a maximum of 3.3 V and provides a minimum output cu.

TPS61005 Features

* 1 Start-Up Into a Full Load With Supply Voltages as Low as 0.9 V Over Full Temperature Range

* Minimum 100-mA Output Current From 0.8-V Supply Voltage, 250 mA From 1.8 V

* High Power Conversion Efficiency, up to 90%

* Power-Save Mode for Improved Efficiency at Low Ou

TPS61005 Datasheet (838.71 KB)

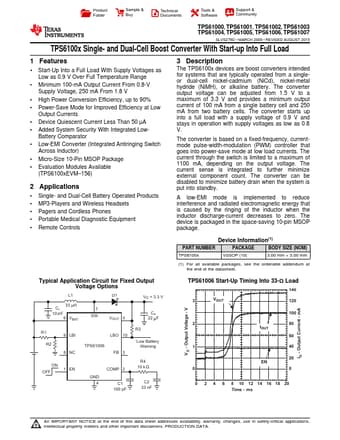

Preview of TPS61005 PDF

Datasheet Details

Part number:

TPS61005

Manufacturer:

Texas Instruments ↗

File Size:

838.71 KB

Description:

Single- and dual-cell boost converter.
